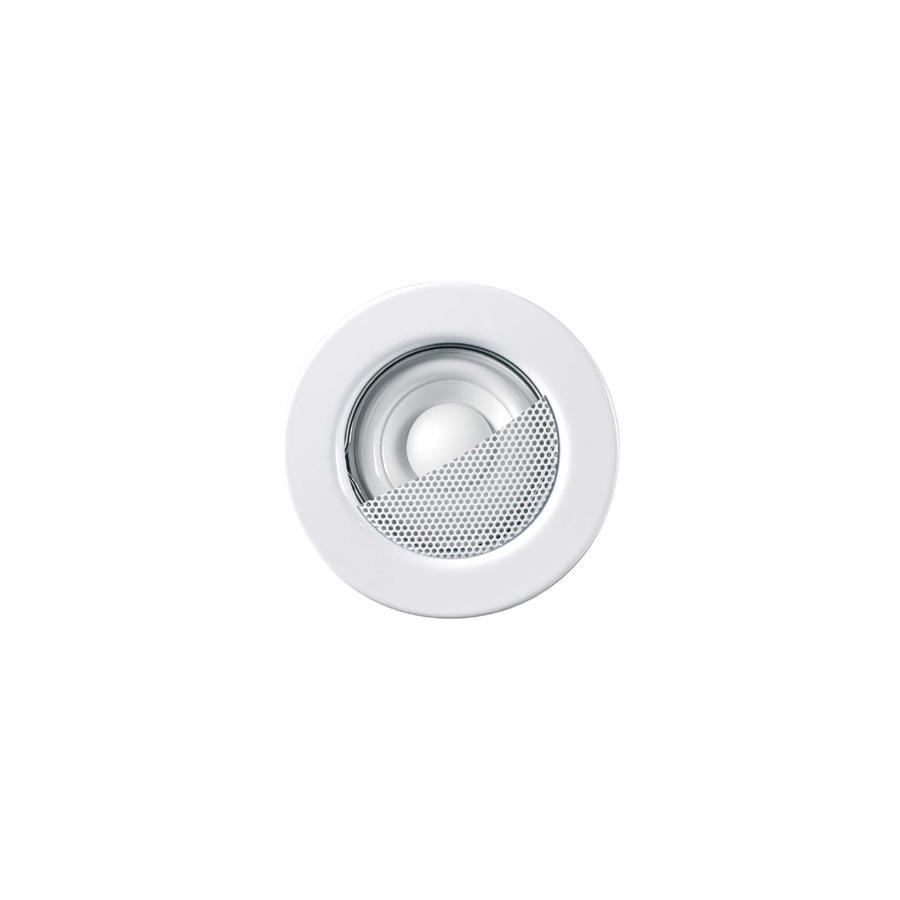

Ci50R
Architectural Speakers
£55
Tax included.
The popular Soundlight Series is yet another major innovation
The popular Soundlight Series is yet another major innovation form KEF. When installed, Soundlight speakers are so tiny that they blend in with halogen light fixtures yet will amaze you with their astonishing performance.
Features and Benefits
Purpose-built for flush mounting into walls and ceilings, the Ci50R delivers KEF audio quality as unobtrusively as possible, and with KEF’s standard lighting style fitting, you’ll also find them amazingly easy and rapid to install.
Applications
The KEF Ci50R speaker is designed to be used in moisture prone locations, and can be used in the dry areas of bathrooms. The Ci Series Ci50R is best suited for plastered or suspended ceilings where high quality background music and speech reinforcement applications require hi-fi performance such as:
- Multi Room systems
- Lounges, Bars, Boutiques
- Boardrooms & Offices
- Bathrooms
- Fitting room / walk-in closets
Architectural Specifications
The Ci Series Ci50R comprises a 50mm full range speaker. Performance should meet or exceed the following criteria: frequency response 1 metre on-axis with swept sinewave shall be 155Hz to 20kHz, system sensitivity shall be at least 82dB for 2.83V@1m. The driver impedance shall be 6 ohms.
The Details
SPECIFICATIONS
Nominal Impedance
6 Ohms
Sensitivity
82dB (2.83V/ 1m)
Frequency Response
125 - 20kHz (±6dB) 2pi/open-backed
170 - 20KHz (±6dB) With back can/rear enclosure
170 - 20KHz (±6dB) With back can/rear enclosure
Drive Units
MF: 50mm
Recommended Amplifier Power
10 - 30W
Product External Dimension (H X W X D)
80mm (3.15in.) / - / 55mm (2.17in.) / 90mm (3.54in.) with back can
Cut-Out Dimensions (H X W)
65mm (2.56in.) / 70mm (2.76in.) with back can
Mounting Thickness
Ceiling Thickness (Maximum): 20mm (0.79 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface
Product only : 50mm (1.97in.)
With back can : 90mm (3.54in.)
With back can : 90mm (3.54in.)
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
Please visit our Ci Software Download page for more details.
