Unprecedented value and performance
Heard but not seen, KEF’s Ci-E series of architectural speakers is designed and manufactured to the same exacting standards as all KEF's architectural offerings and features KEF's famed Uni-Q driver technology.

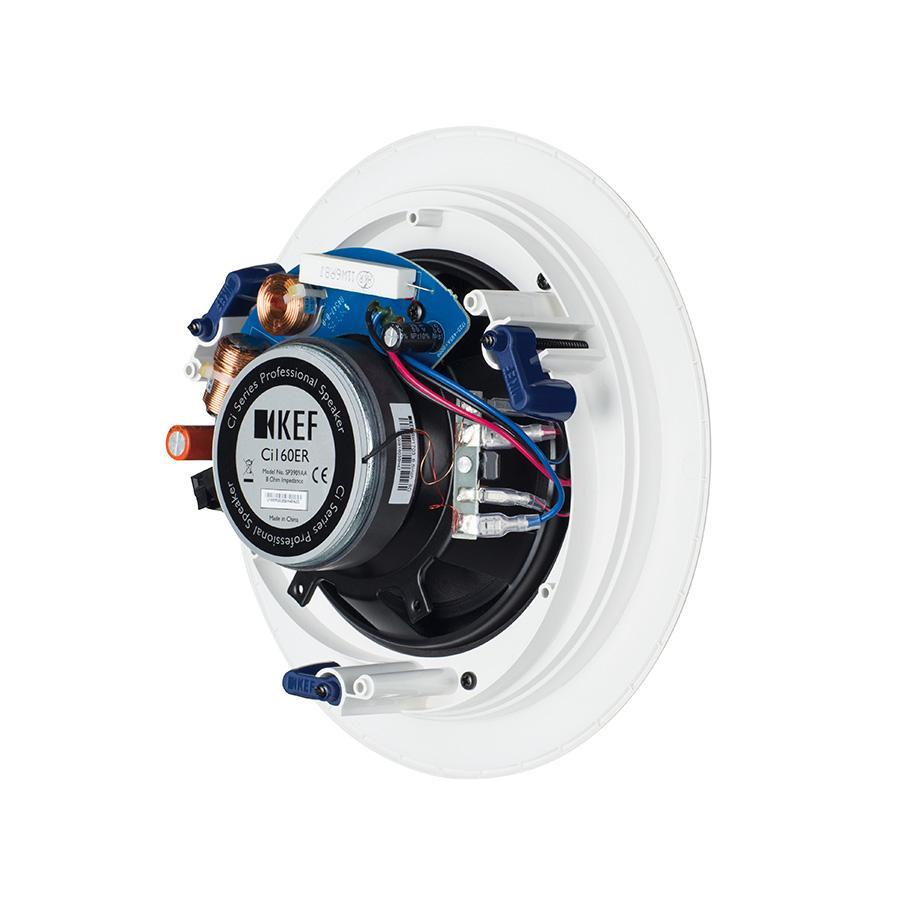

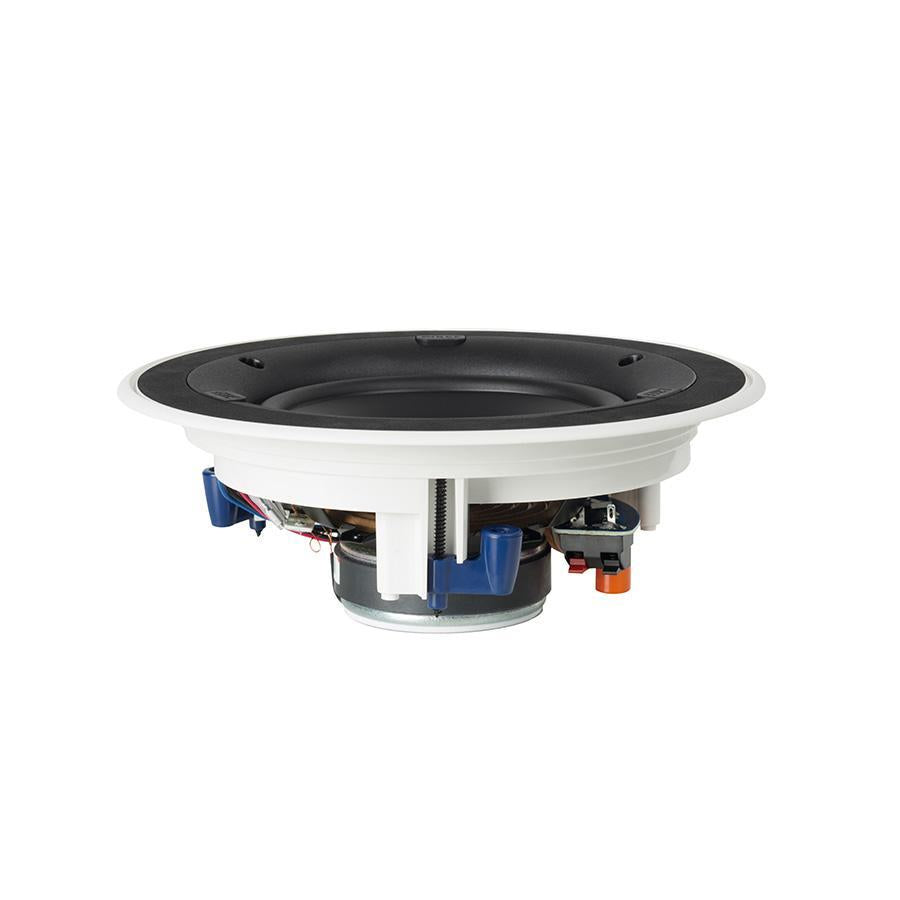

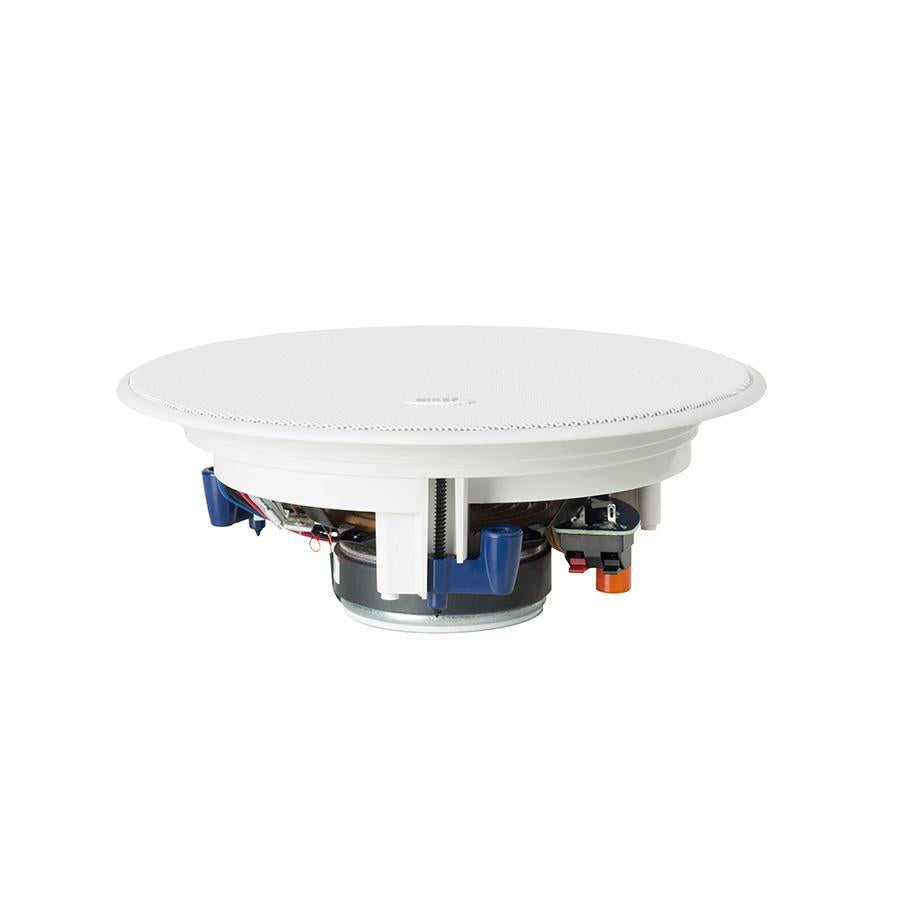

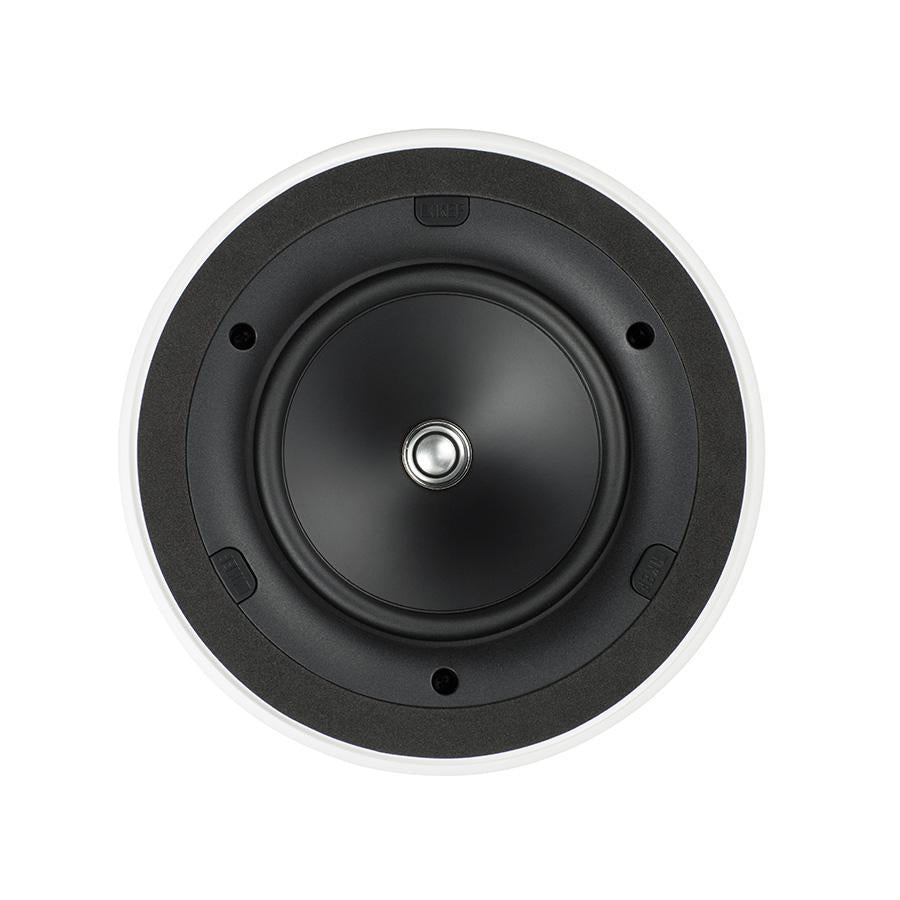

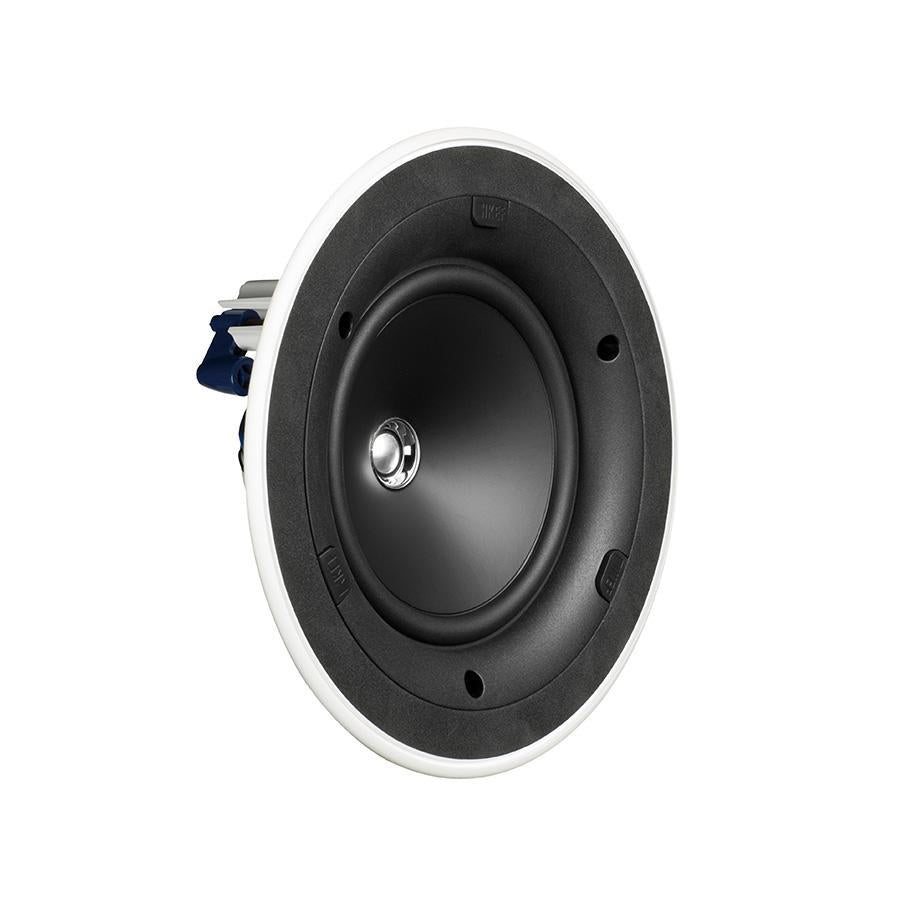

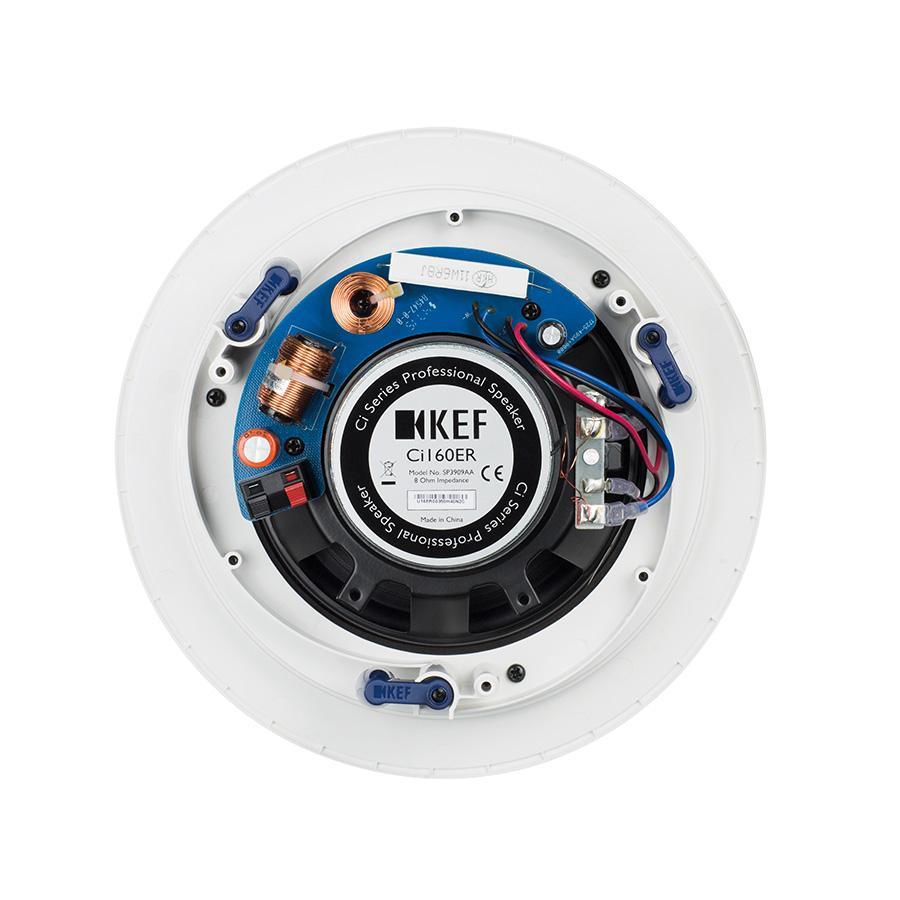

Ci160ER
Heard but not seen, with unprecedented value and performance, KEF's Ci-E series of architectural speakers is designed and manufactured to the same exacting standards as all KEF's architectural offerings and features KEF's famed Uni-Q driver technology.
KEF's Uni-Q driver enables the mid-range and tweeter to act as a single point source. This patented technology allows the listener to sit anywhere in the room and still enjoy KEF's world-renowned sound and clarity without having to be positioned in the narrow "sweet-spot" found with conventional speaker designs.

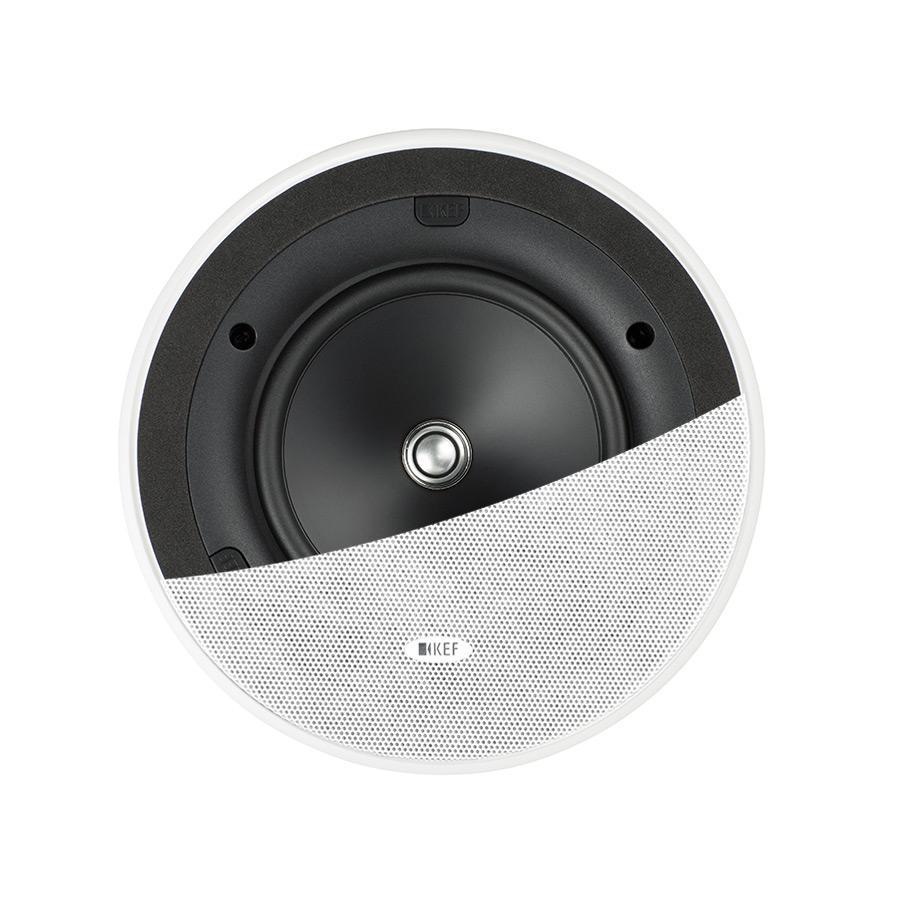

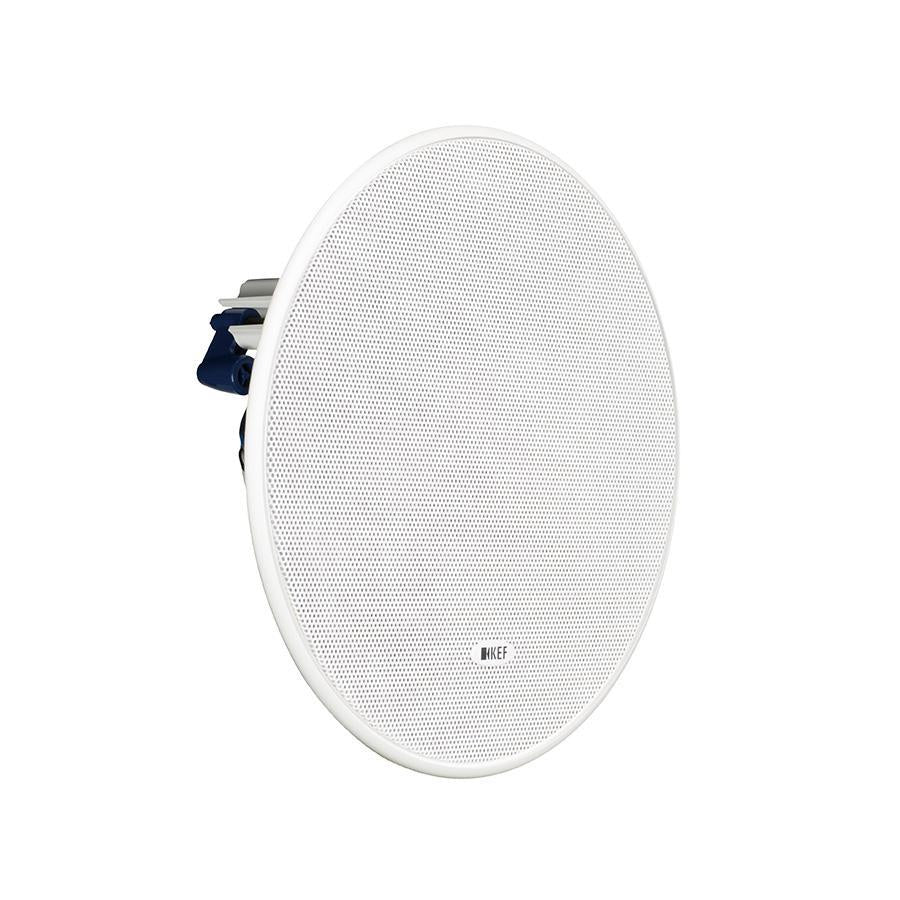

The Ci-E Series also features KEF's Ultra-Thin Bezel (UTB) technology which offers the thinnest possible visible rim around the speaker assembly. The bezel and grill can be painted to match the interior décor.
The speakers in the Ci-E Series, are manufactured to Weather Resistant Construction standards: The grilles are coated via a proprietary process, the speakers include moisture-resistant terminations and finish materials, and the plastics are UV protected, allowing you to safely use these speakers in applications such as bathroom and kitchen.
KEF's Uni-Q driver enables the mid-range and tweeter to act as a single point source. This patented technology allows the listener to sit anywhere in the room and still enjoy KEF's world-renowned sound and clarity without having to be positioned in the narrow "sweet-spot" found with conventional speaker designs.
The Ci-E Series also features KEF's Ultra-Thin Bezel (UTB) technology which offers the thinnest possible visible rim around the speaker assembly. The bezel and grill can be painted to match the interior décor.
The speakers in the Ci-E Series, are manufactured to Weather Resistant Construction standards: The grilles are coated via a proprietary process, the speakers include moisture-resistant terminations and finish materials, and the plastics are UV protected, allowing you to safely use these speakers in applications such as bathroom and kitchen.
The Details
FEATURES
UTB™ Ultra Thin Bezel
160mm (6.5in.) Uni-Q driver array
16mm (0.6in.) Aluminium dome tweeter
Weather Resistant
Magnetic Grille
160mm (6.5in.) Uni-Q driver array
16mm (0.6in.) Aluminium dome tweeter
Weather Resistant
Magnetic Grille
SPECIFICATIONS
Nomimal Impedance
8 Ohms
Sensitivity
89dB (2.83V/ 1m)
Frequency Response
52Hz - 20kHz (+/-6dB) open-backed
Crossover Frequencies
2.8kHz
Drive Units
LF: 160mm (6.5in.)
HF: 16mm (0.6in.)
HF: 16mm (0.6in.)
Recommended Amplifier Power
10-100W
Product External Dimensions
Diameter : 234.6mm (9.24in.)
Depth : 88.7mm (3.49in.)
Depth : 88.7mm (3.49in.)
Cut-Out Dimensions
Diameter : 196mm (7.71in.)
Mounting Thickness
Ceiling Thickness (Maximum): 36mm (1.42 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface
85.2mm (3.35in.)
Optional Rough In Frame
RIF160R
Optional Rear Enclosure
RNC160R
Net Weight
1.4kg (3.1lbs)
Unit Measurement
Piece
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
Please visit our Ci Software Download page for more details.
