Unprecedented value and performance
Heard but not seen, KEF's E series of architectural speakers is designed and manufactured to the same exacting standards as all KEF's architectural offerings and features KEF's famed Uni-Q driver technology.
Available October 2021

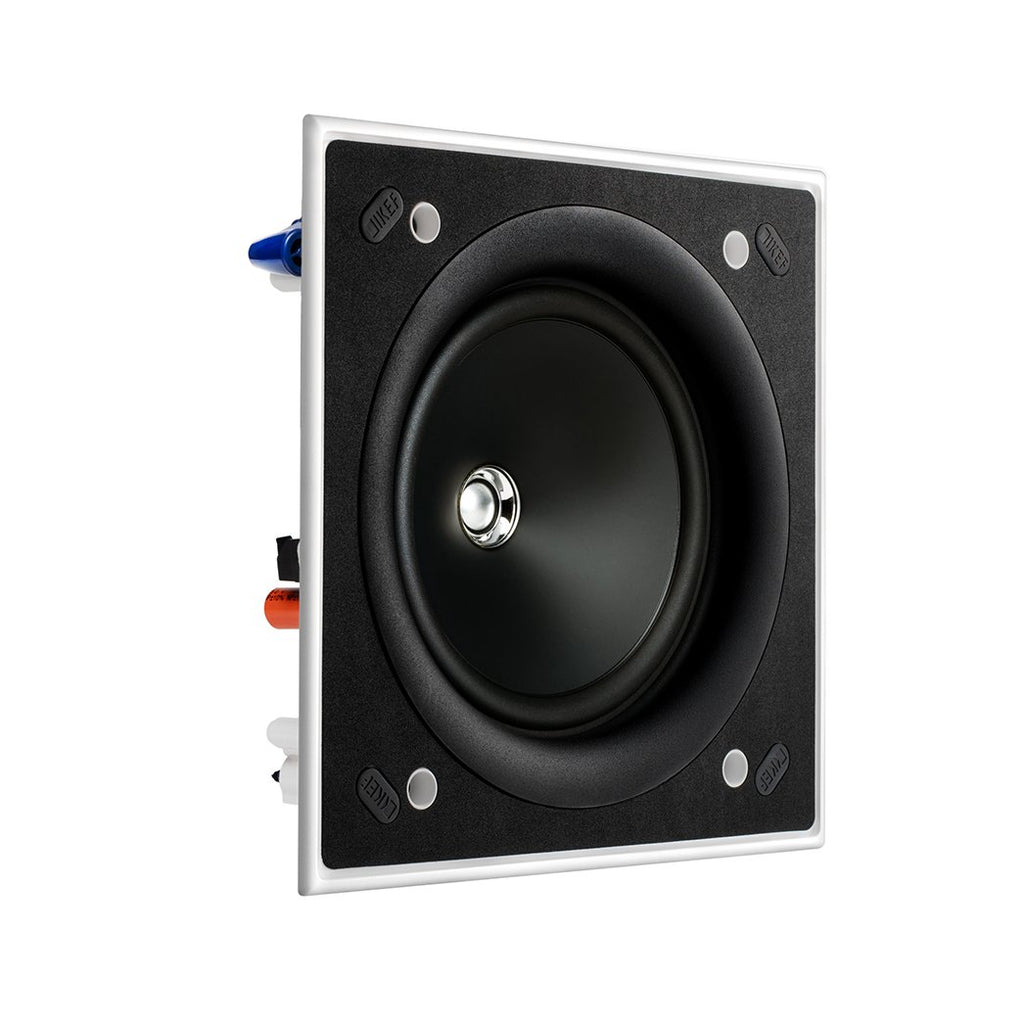

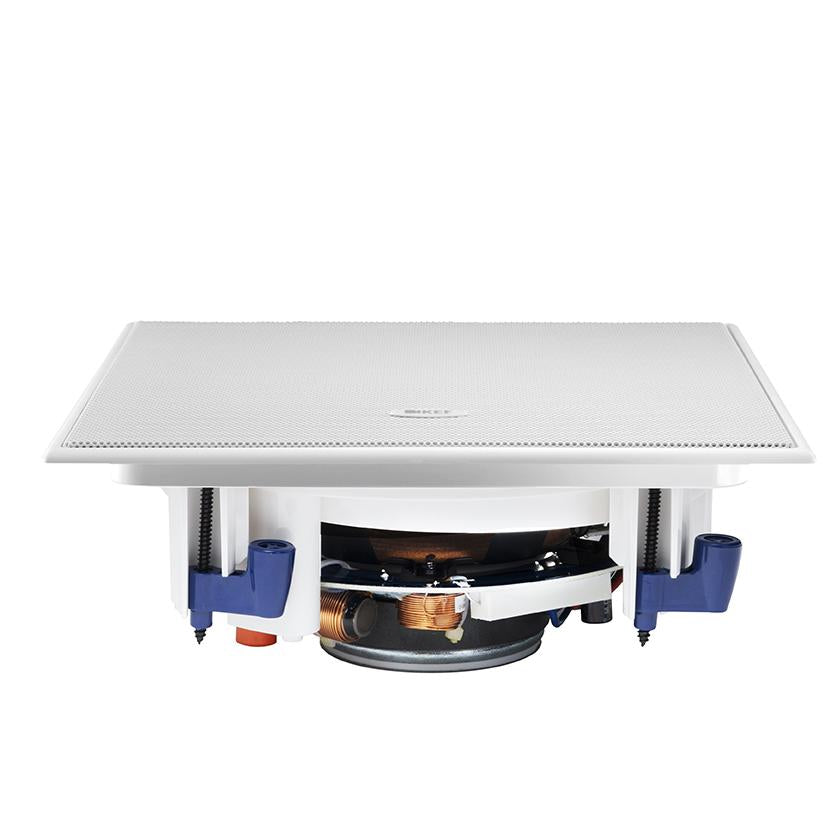

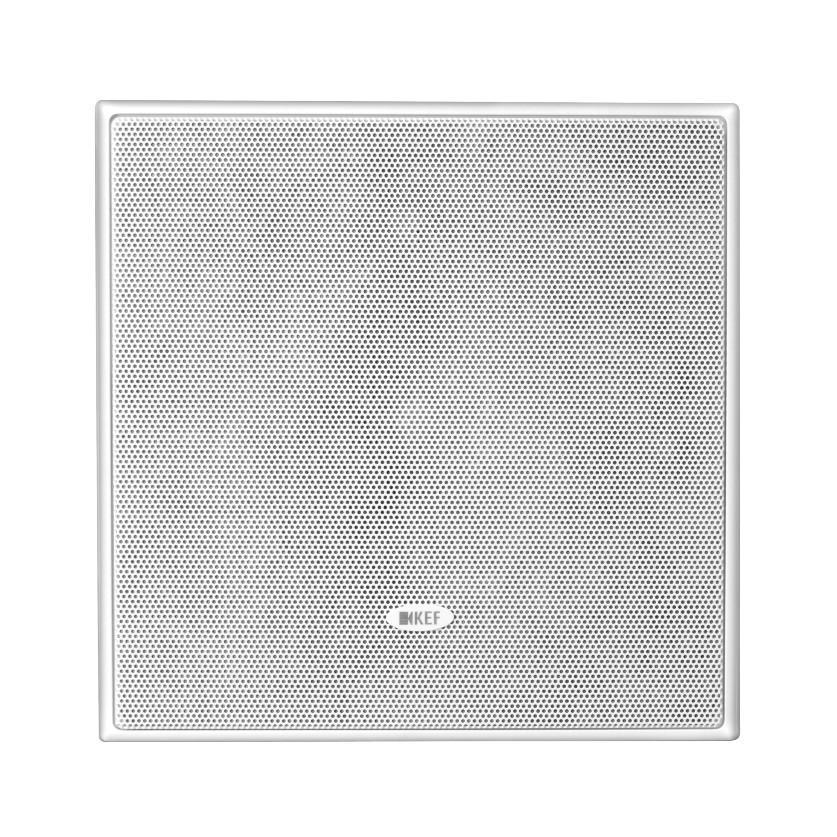

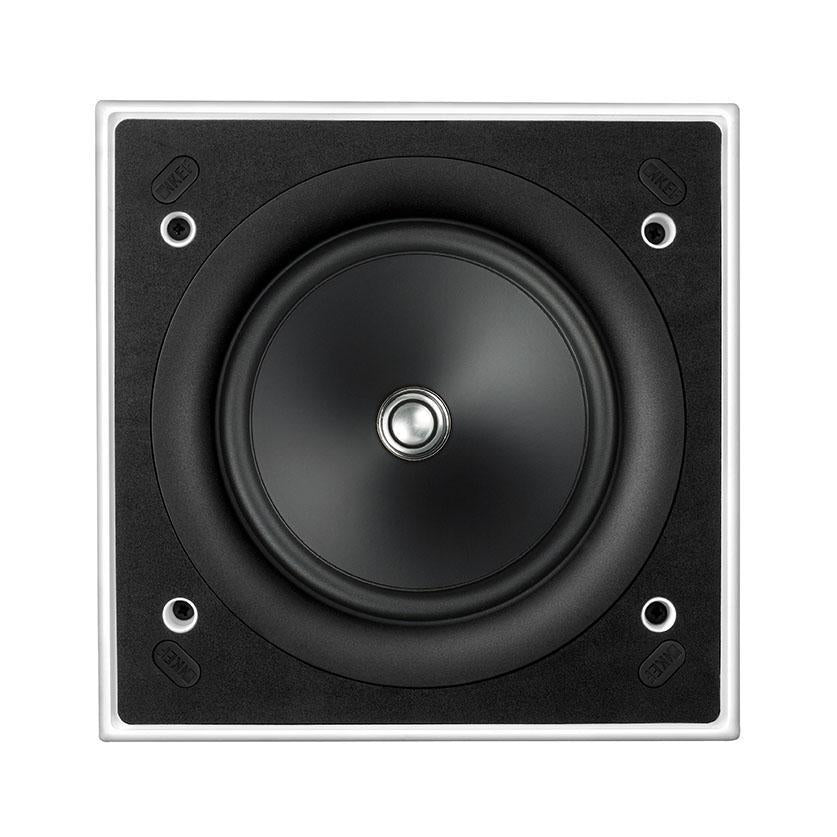

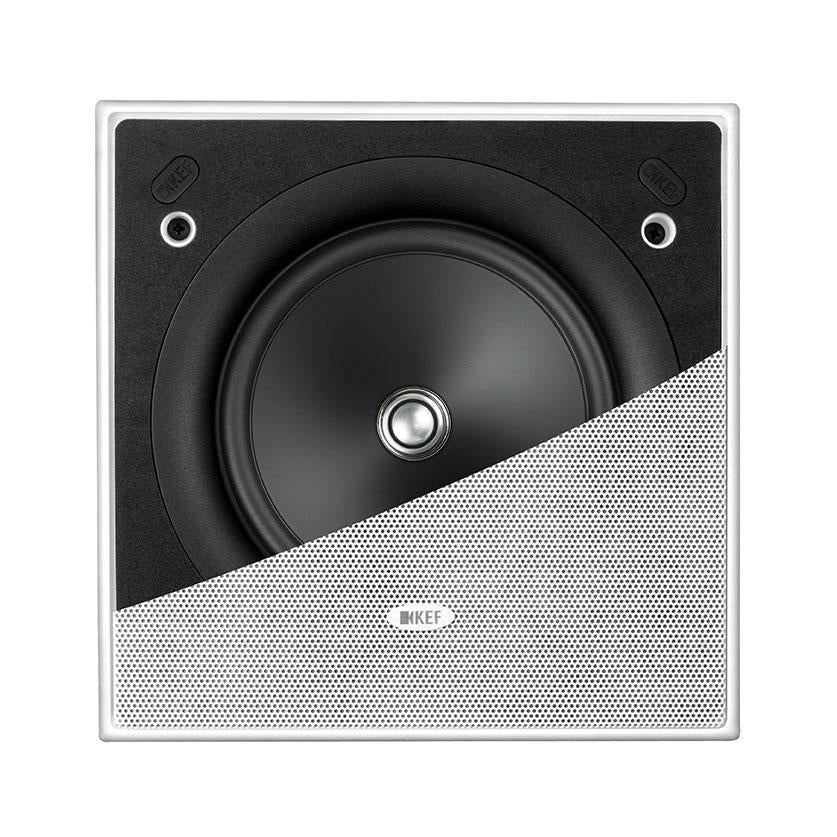

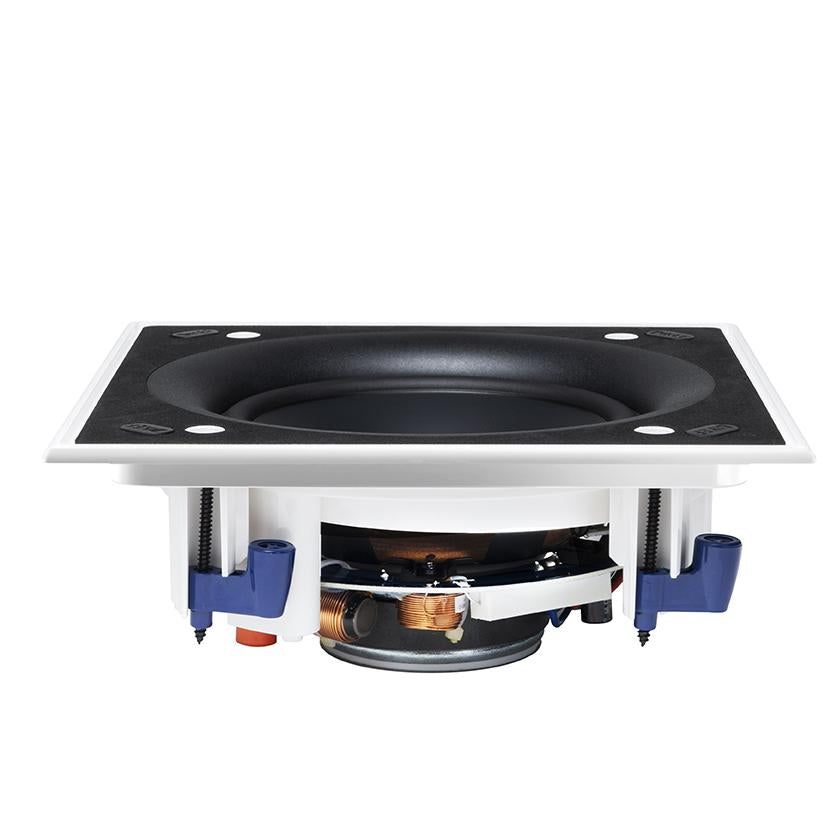

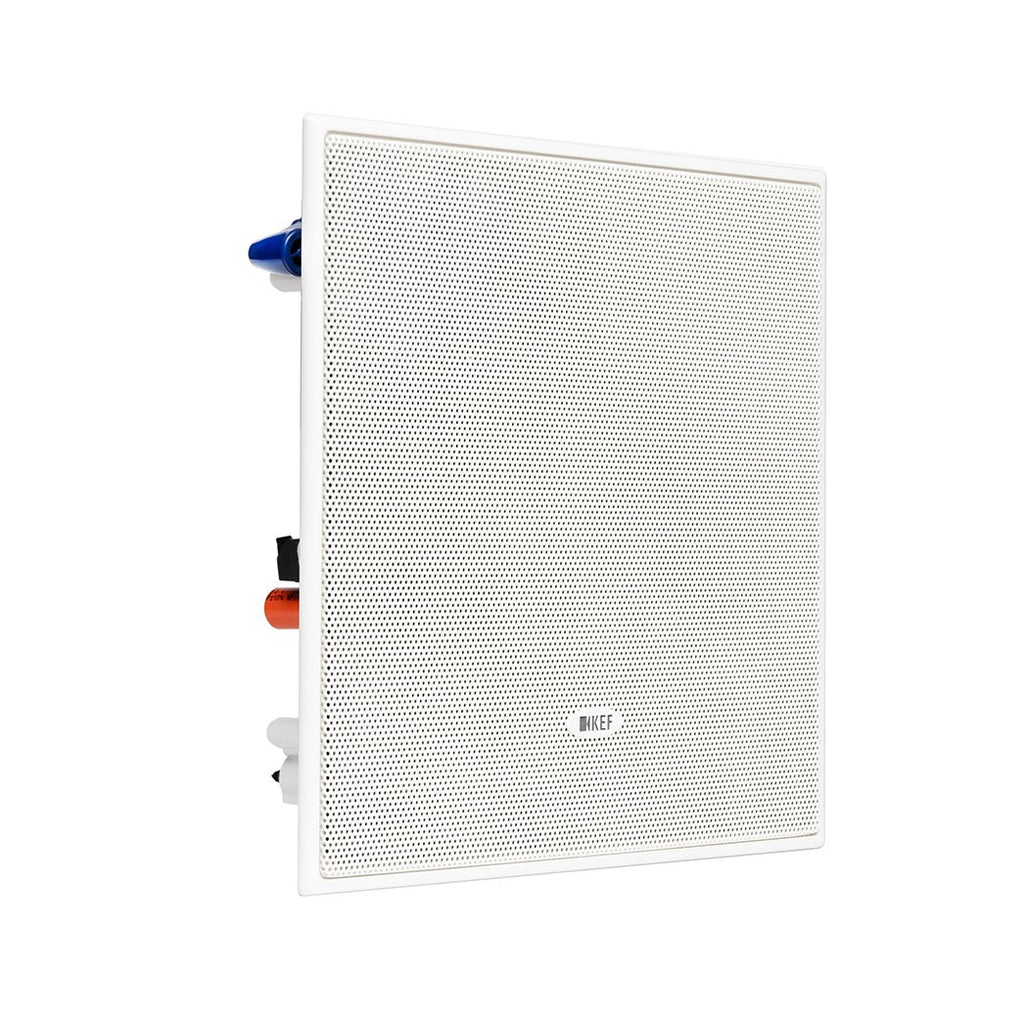

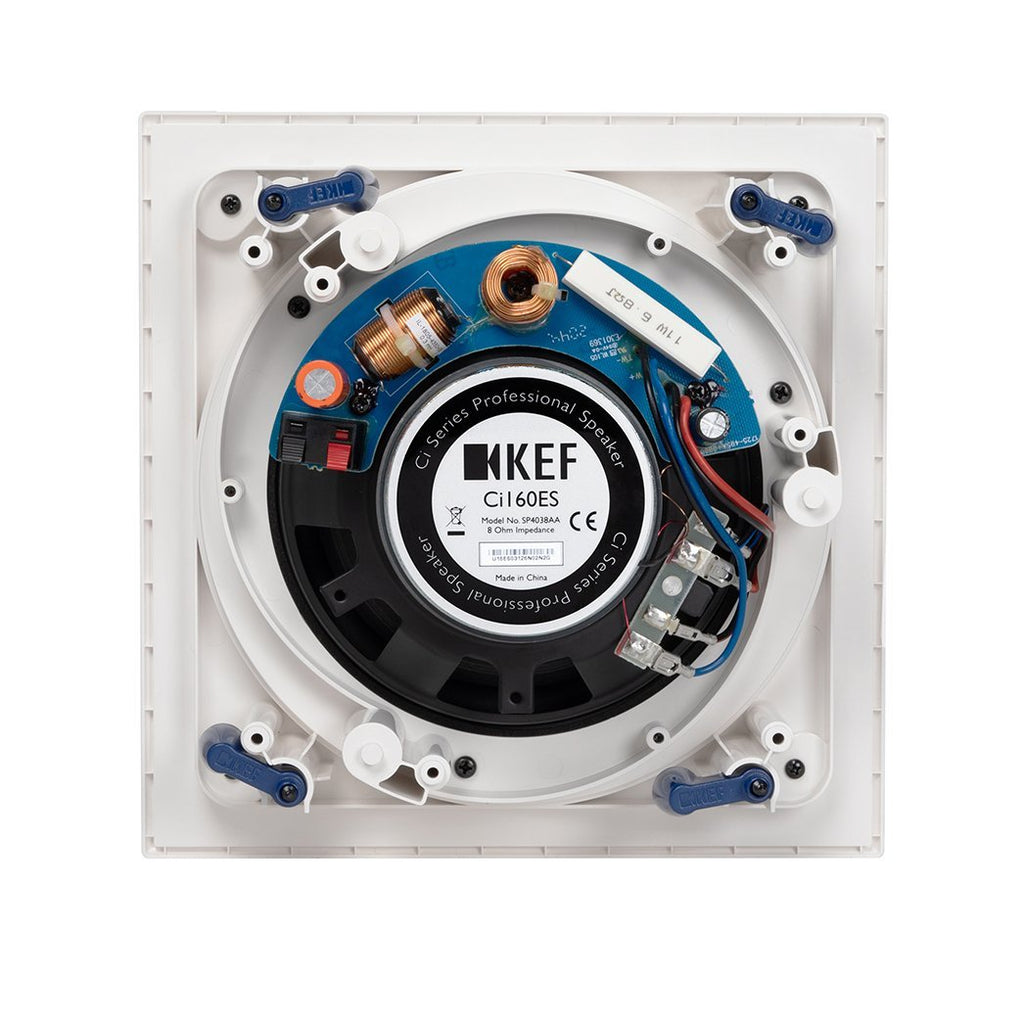

Ci160ES
Heard but not seen, with unprecedented value and performance, KEF’s Ci-E series of architectural speakers is designed and manufactured to the same exacting standards as all KEF's architectural offerings and features KEF's famed Uni-Q driver technology.
KEF's Uni-Q driver enables the mid-range and tweeter to act as a single point source. This patented technology allows the listener to sit anywhere in the room and still enjoy KEF's world-renowned sound and clarity without having to be positioned in the narrow "sweet-spot" found with conventional speaker designs.
The Ci-E Series also features KEF's Ultra-Thin Bezel (UTB) technology which offers the thinnest possible visible rim around the speaker assembly. The bezel and grill can be painted to match the interior décor.
The speakers in the Ci-E Series, are manufactured to Weather Resistant Construction standards: The grilles are coated via a proprietary process, the speakers include moisture-resistant terminations and finish materials, and the plastics are UV protected, allowing you to safely use these speakers in applications such as bathroom and kitchen.
KEF's Uni-Q driver enables the mid-range and tweeter to act as a single point source. This patented technology allows the listener to sit anywhere in the room and still enjoy KEF's world-renowned sound and clarity without having to be positioned in the narrow "sweet-spot" found with conventional speaker designs.
The Ci-E Series also features KEF's Ultra-Thin Bezel (UTB) technology which offers the thinnest possible visible rim around the speaker assembly. The bezel and grill can be painted to match the interior décor.
The speakers in the Ci-E Series, are manufactured to Weather Resistant Construction standards: The grilles are coated via a proprietary process, the speakers include moisture-resistant terminations and finish materials, and the plastics are UV protected, allowing you to safely use these speakers in applications such as bathroom and kitchen.
The Details
FEATURES
- UTB™ Ultra Thin Bezel
- 160mm (6.5in.) Uni-Q driver array
- 16mm (0.6in.) Aluminium dome tweeter
- Weather Resistant
- Magnetic Grille
SPECIFICATIONS
Nomimal Impedance
8 Ohms
Sensitivity
89dB (2.83V/1m)
Frequency Response
52Hz - 20kHz (+/-6dB) open-backed
Frequency Range
46Hz - 45kHz (-10dB)
Nominal Coverage
110° (Degrees)
Max SPL (dB)
104dB
Crossover Frequencies
2.8kHz
Drive Units
LF: 160mm (6.5in.) Uni-Q
HF: 16mm (0.6in.)
HF: 16mm (0.6in.)
Recommended Amplifier Power
10 - 100W
Recommended High-Pass Filter (Hz)
50Hz
Product External Dimensions
223 x 223 x 88.7mm (8.78 x 8.78 x 3.49in.)
Cut-Out Dimensions
194 x 194 mm (7.64 x 7.64 in.)
Mounting Depth From Surface
85.2mm (3.35in.)
Optional Rough In Frame
RIF160S
Optional Rear Enclosure
RNC160S
Net Weight
1.4kg (3.1lbs)
Ideal Rear Volume (L)
35L
Minimum Rear Volume (L)
20L
Certification
IP64
Please visit our Ci Software Download page for more details.
