Features KEF’s patented Uni-Q driver array
Ci200.2CR in-ceiling speaker features KEF’s patented Uni-Q driver array that allows sound to disperse more evenly throughout the room. The extremely shallow mounting depth allows you to install the Ci200.2CR where other speakers in its class won’t fit.

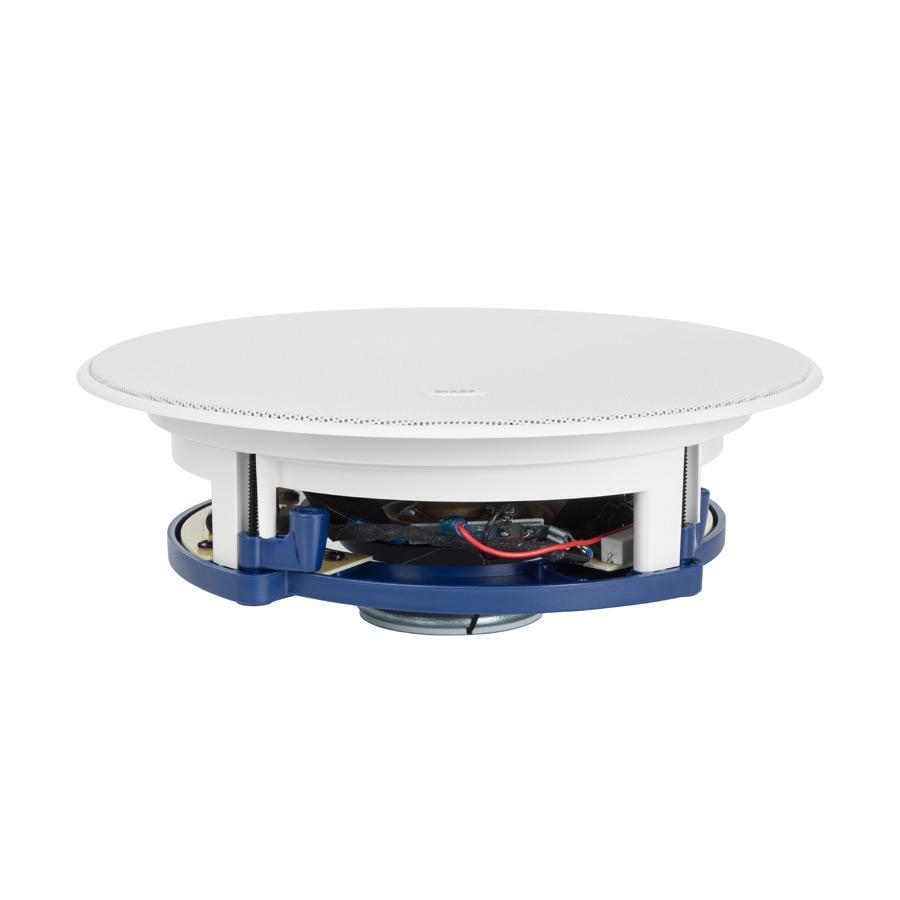

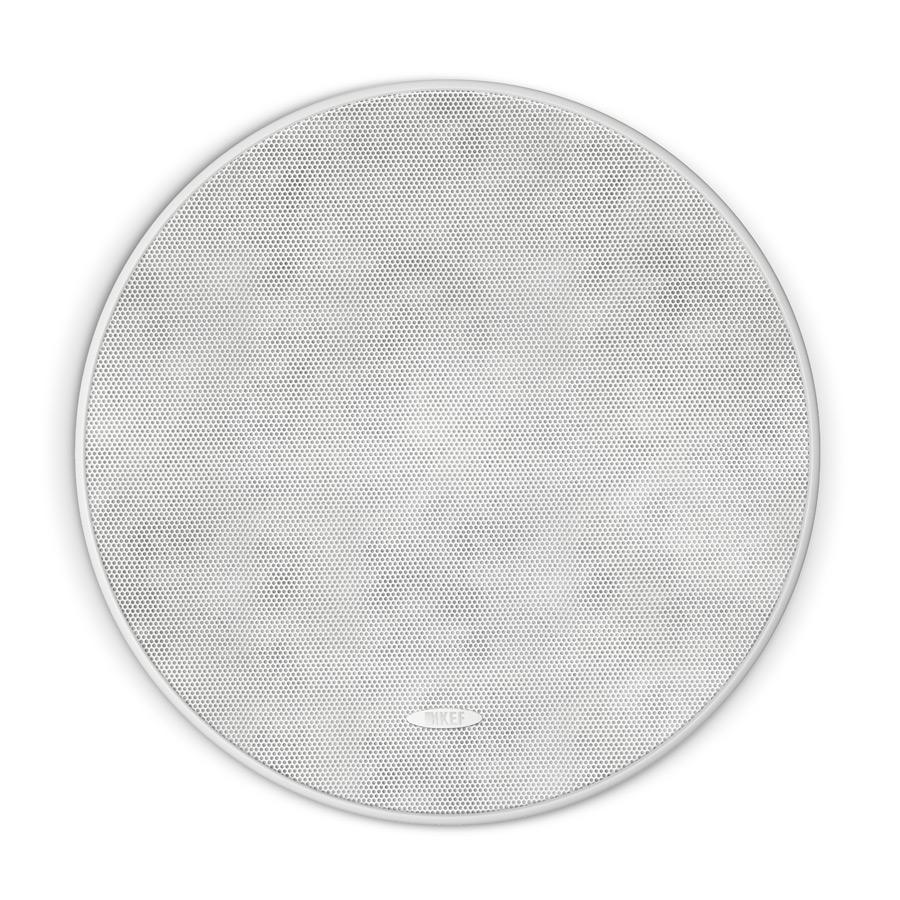

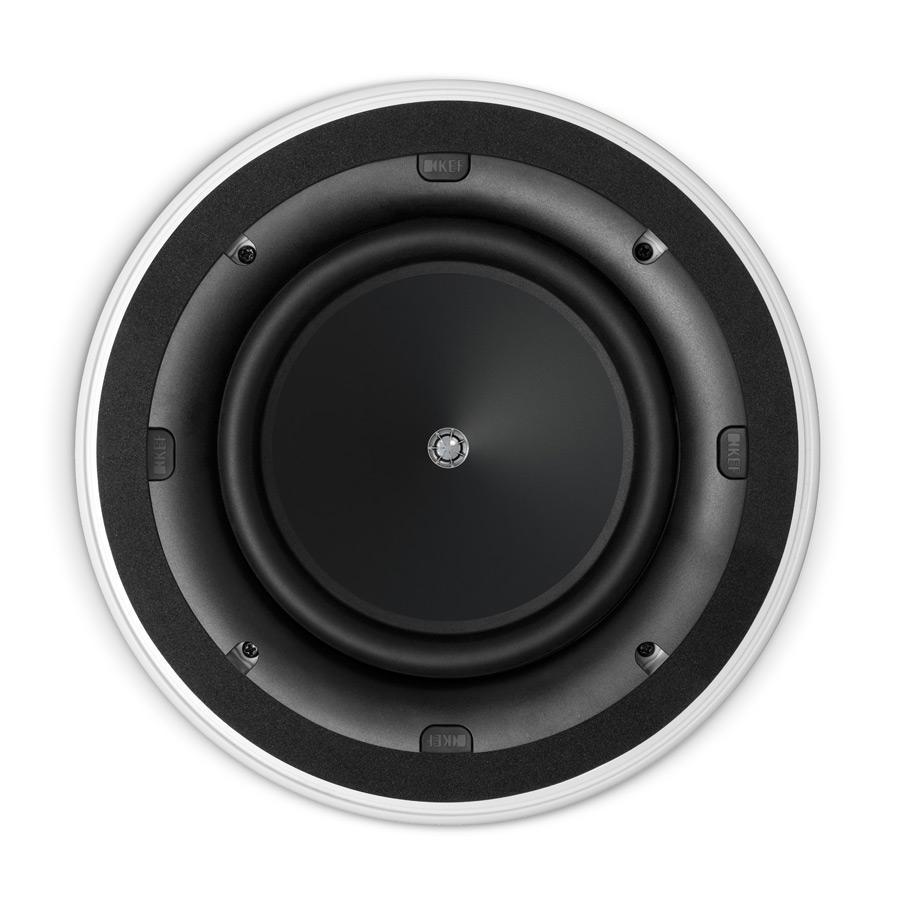

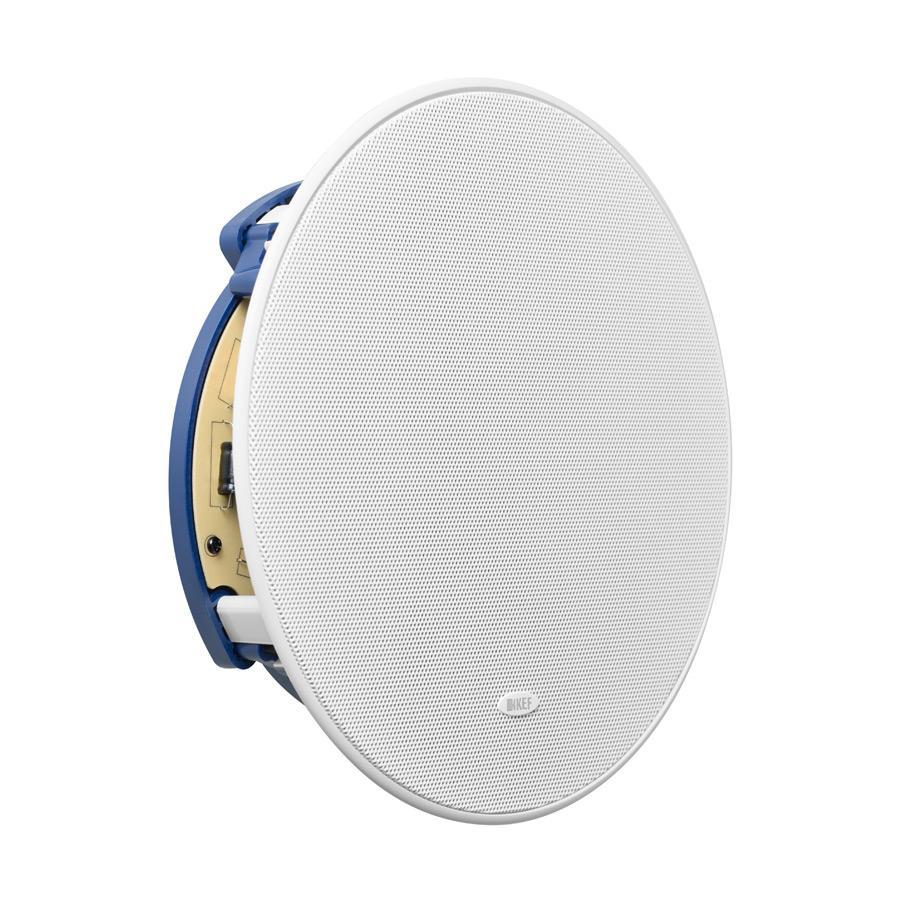

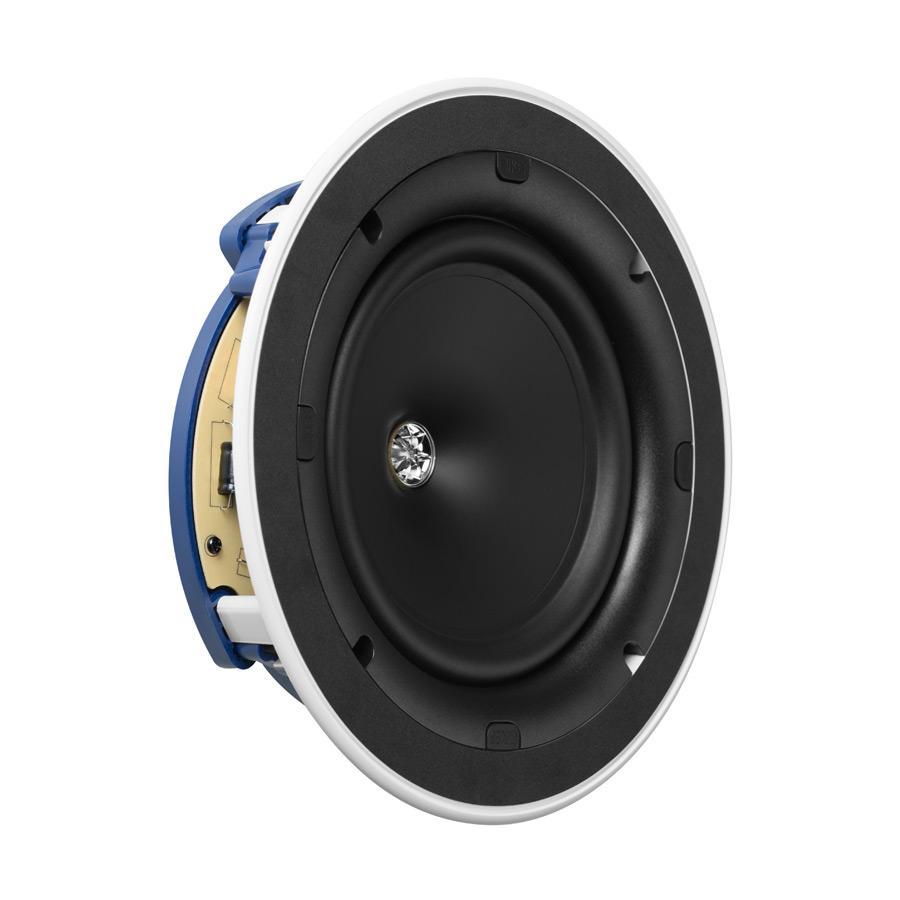

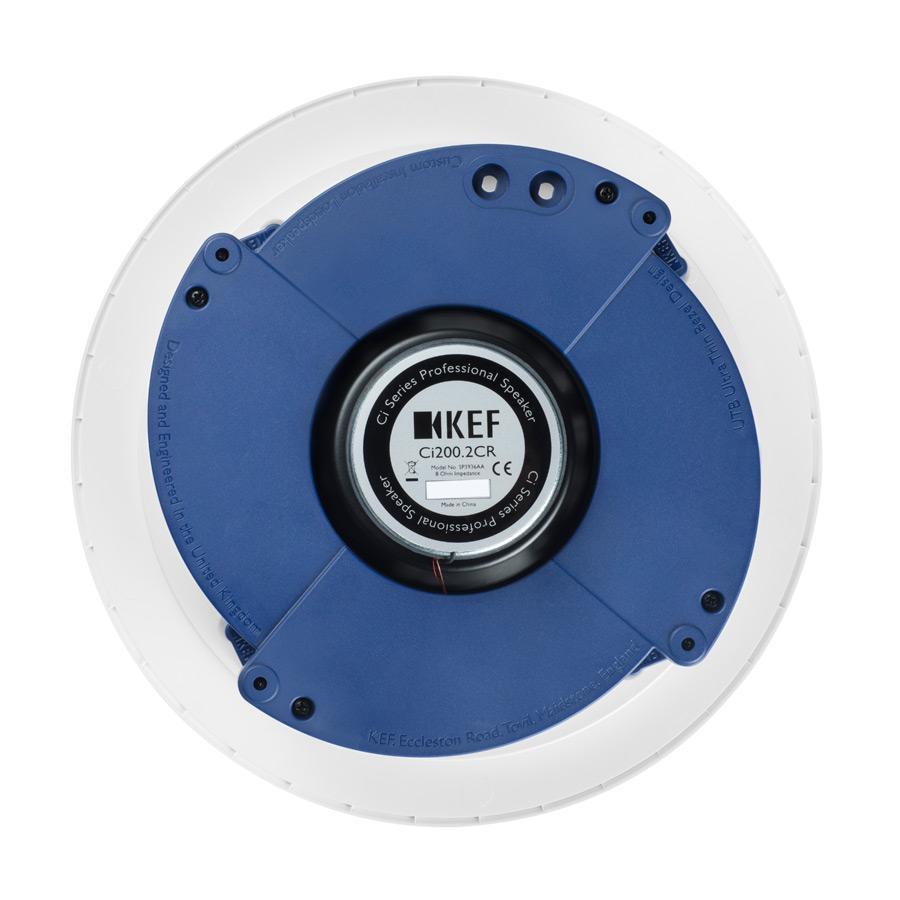

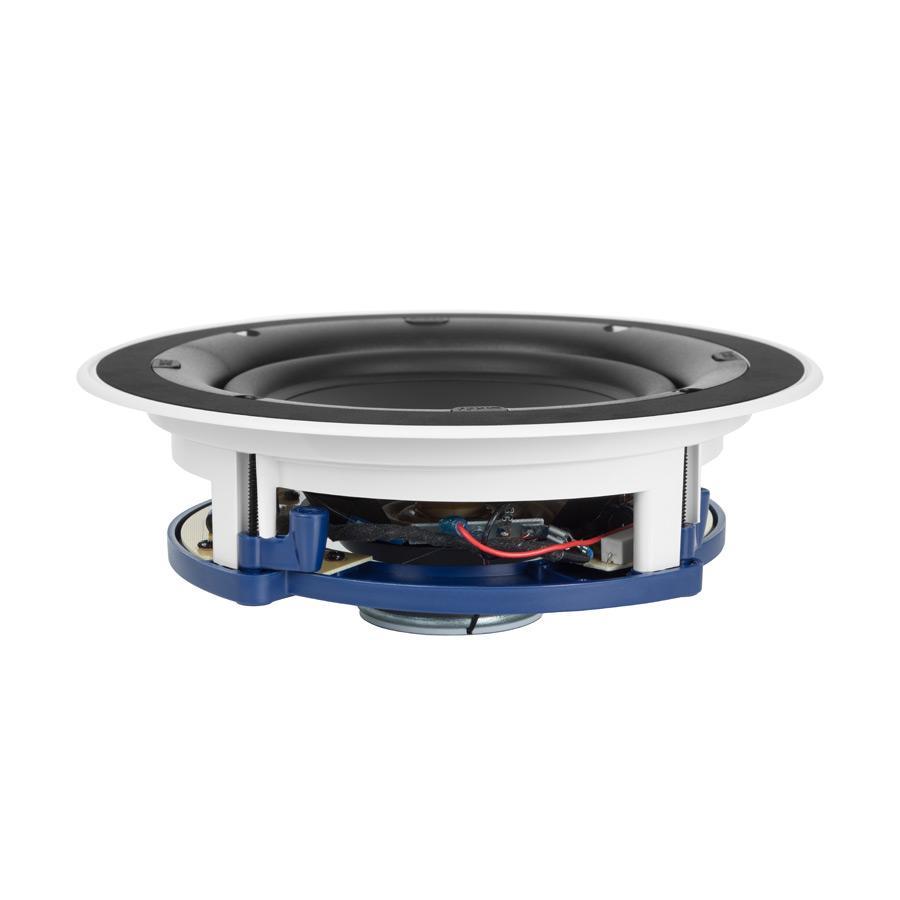

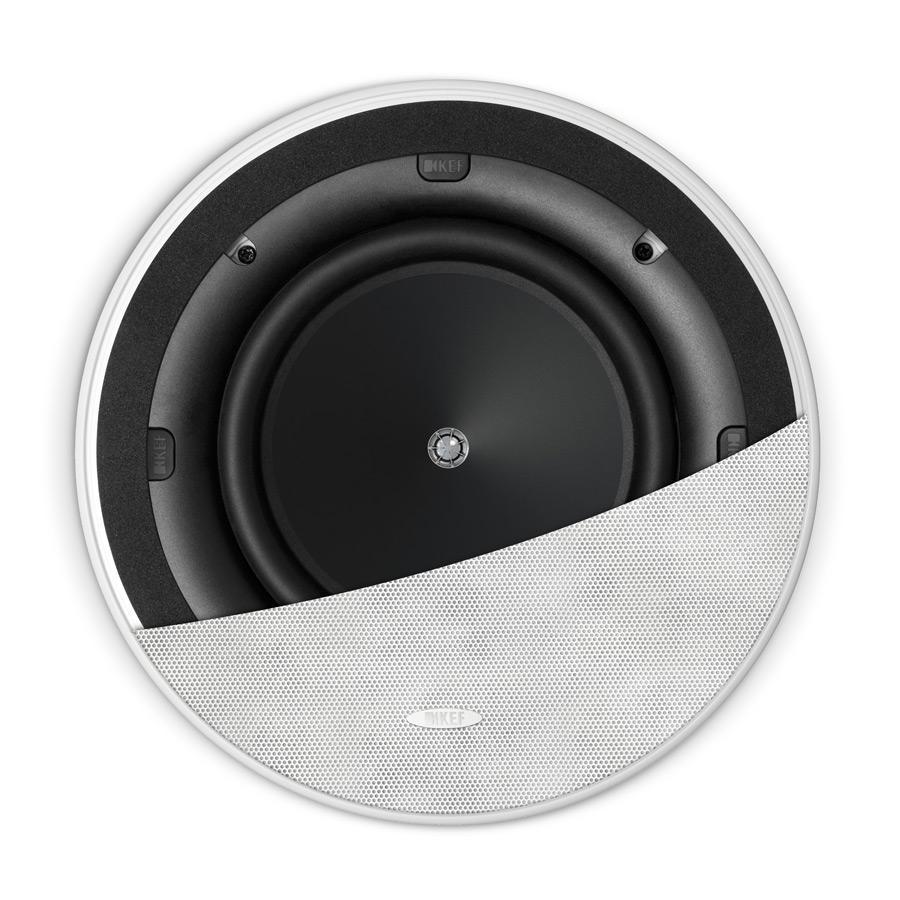

Ci200.2CR
Ci-C Series offers an ideal introduction to the world of custom installation speakers. Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room.
Weather resistant treatment protects the speakers from moisture and UV light. Ultra-Thin Bezels that are barely visible at the edge of exceptionally flat grilles mean the Ci-C Series fits unobtrusively into your home.
Weather resistant treatment protects the speakers from moisture and UV light. Ultra-Thin Bezels that are barely visible at the edge of exceptionally flat grilles mean the Ci-C Series fits unobtrusively into your home.
The Details
FEATURES
UTB™ Ultra-Thin Bezel
200mm (8in.) Uni-Q driver
16mm (0.6in.) Aluminium dome tweeter with tangerine waveguide
Magnetic grille
Paintable grille and bezel
Weather Resistant
IP64 certified
200mm (8in.) Uni-Q driver
16mm (0.6in.) Aluminium dome tweeter with tangerine waveguide
Magnetic grille
Paintable grille and bezel
Weather Resistant
IP64 certified
SPECIFICATIONS
Nominal Impedance
8 Ohms
Sensitivity
90dB (2.83V/ 1m)
Frequency Response
45Hz - 20kHz (+/-6dB) open-backed
Crossover Frequency
2.4kHz
Drive Units
LF: 200mm (8in.) Uni-Q
HF: 16mm (0.6in.)
HF: 16mm (0.6in.)
Recommended Amplifier Power
10-125W
Product External Dimensions
Diameter: 289.6mm (11.4in.)
Depth: 103.3mm (4.07in.)
Depth: 103.3mm (4.07in.)
Cut-Out Dimensions
Diameter: 240mm (9.45in.)
Mounting Thickness
Ceiling Thickness (Maximum): 37mm (1.460in.)
Ceiling Thickness (Minimum): 6mm (0.240in.)
Ceiling Thickness (Minimum): 6mm (0.240in.)
Mounting Depth From Surface
97.2mm (3.83in.)
Optional Rough In Frame
RIF200R
Optional Rear Enclosure
RNC200R
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
Please visit our Ci Software Download page for more details.
