If you're serious about experiencing the ultimate in sound reproduction, the magnificently authoritative Reference 5 exemplifies the passion for innovation that underpins The Reference design philosophy.
Flagship three-way floorstander
Hand-built in Maidstone, UK.
SOUND
REFERENCE 5

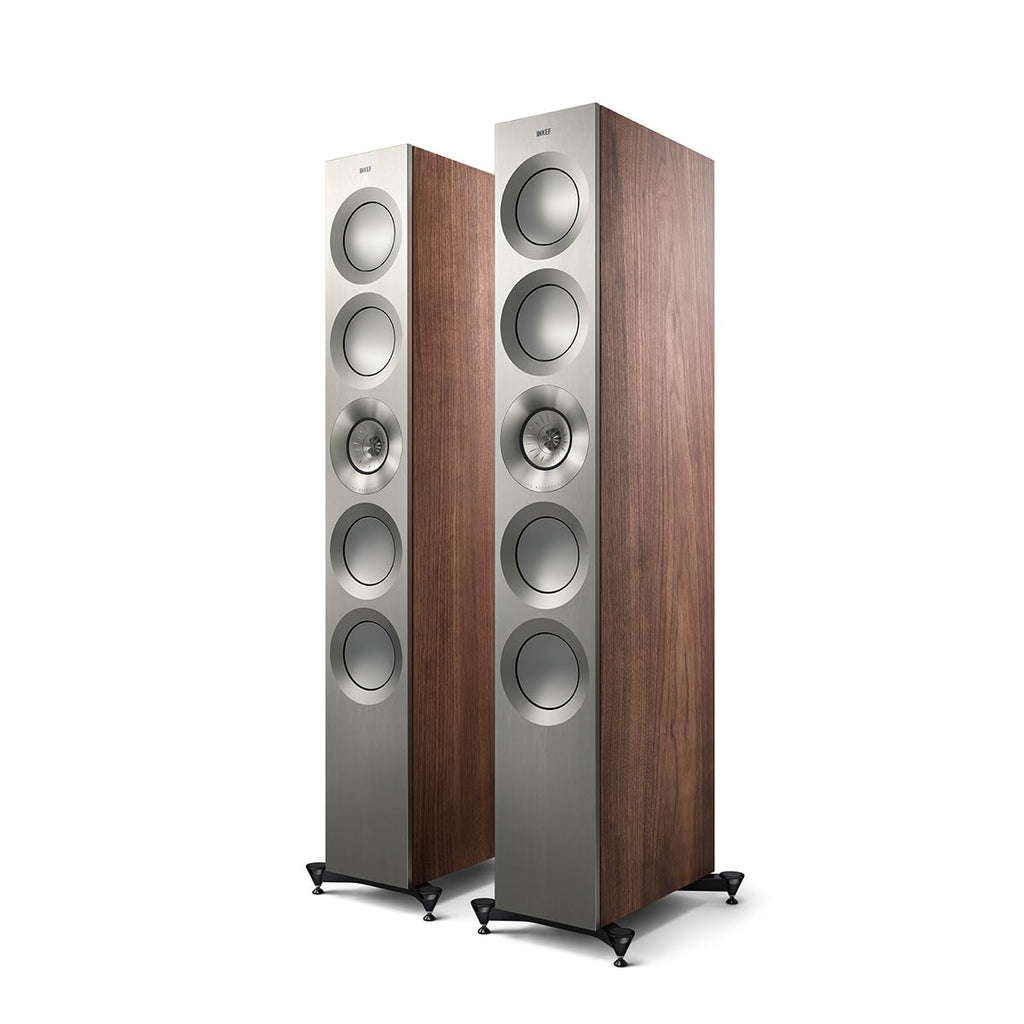

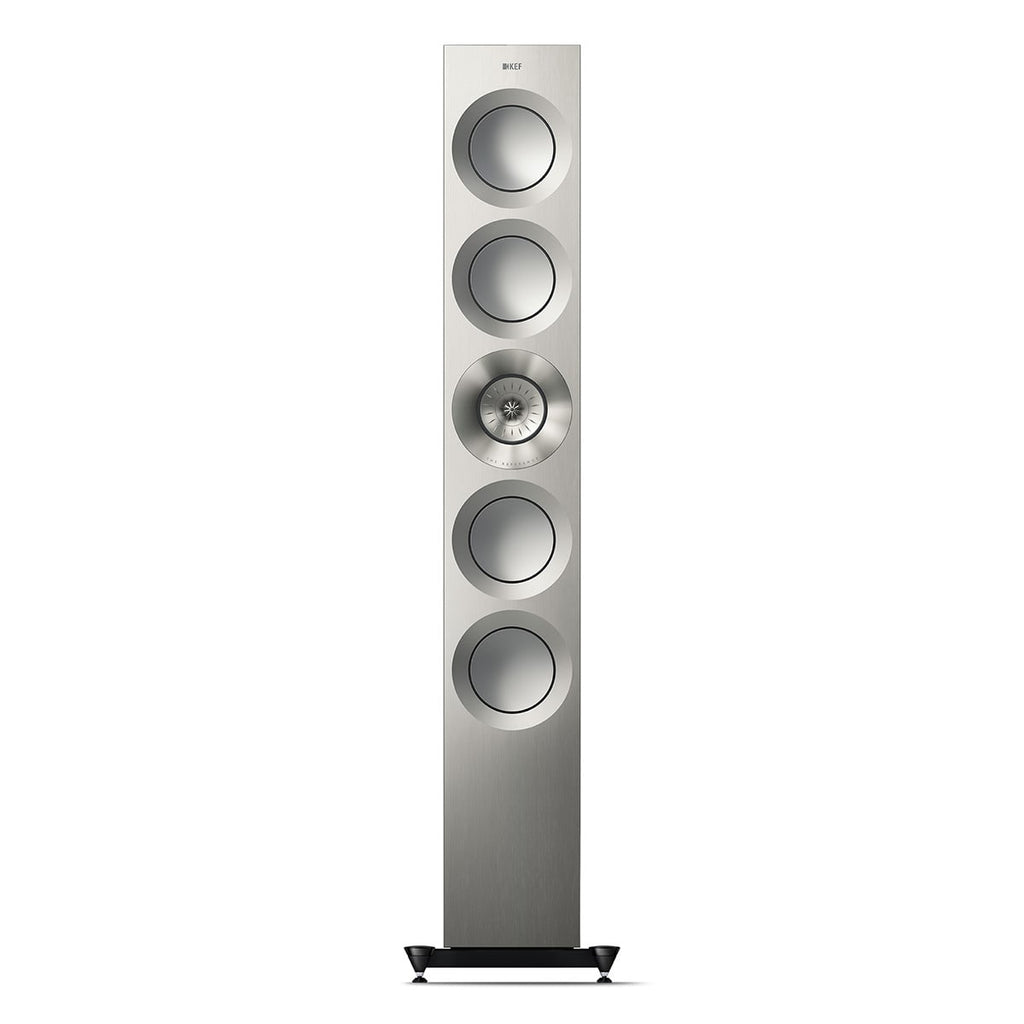

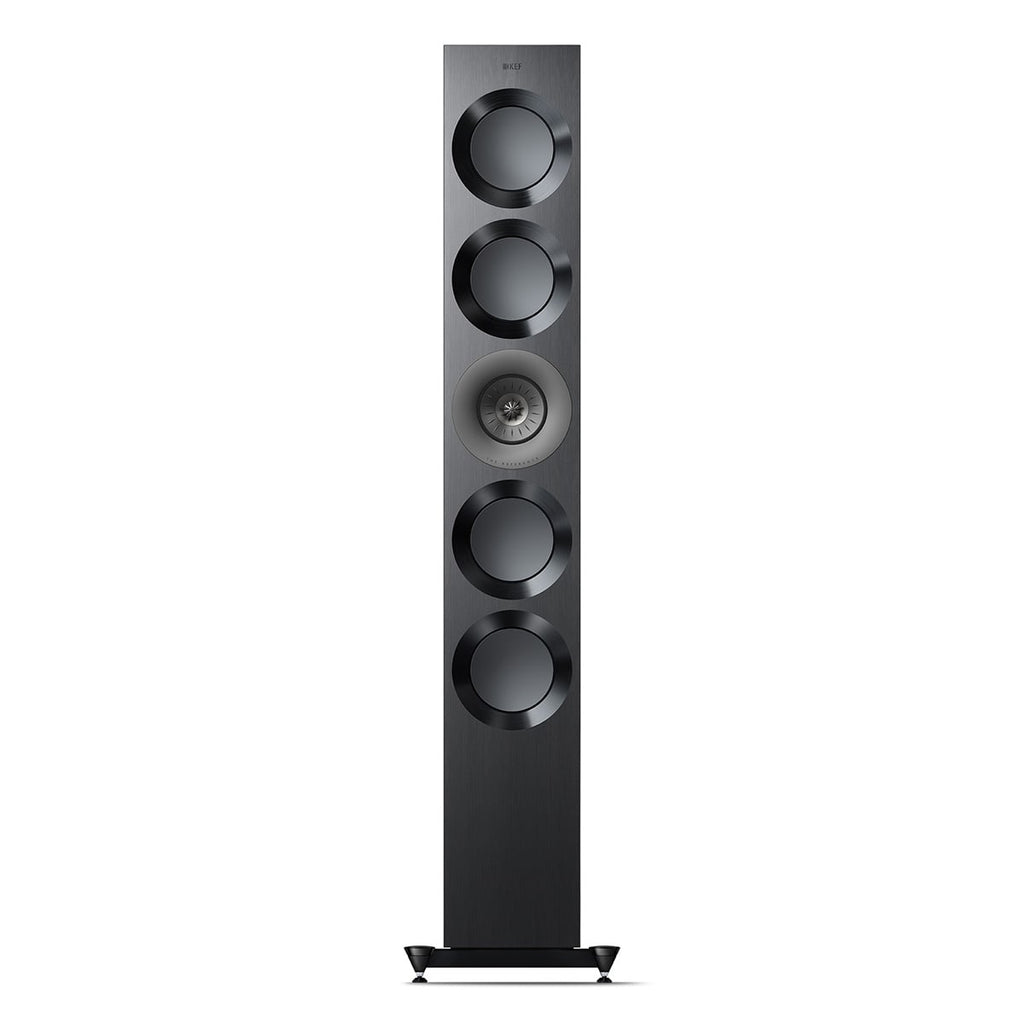

This three-way floorstander aligns four powerful 165mm (6.5 inch) bass drivers with KEF's latest 125mm (5 inch) Uni-Q array and the new vented 25mm (1 inch) aluminium dome tweeter. Lows are reproduced with consummate agility and control, integrating with the midrange to create spine-tingling accuracy and depth.
SPECIFICATIONS
The Details
Specifications
CABINET FINISH

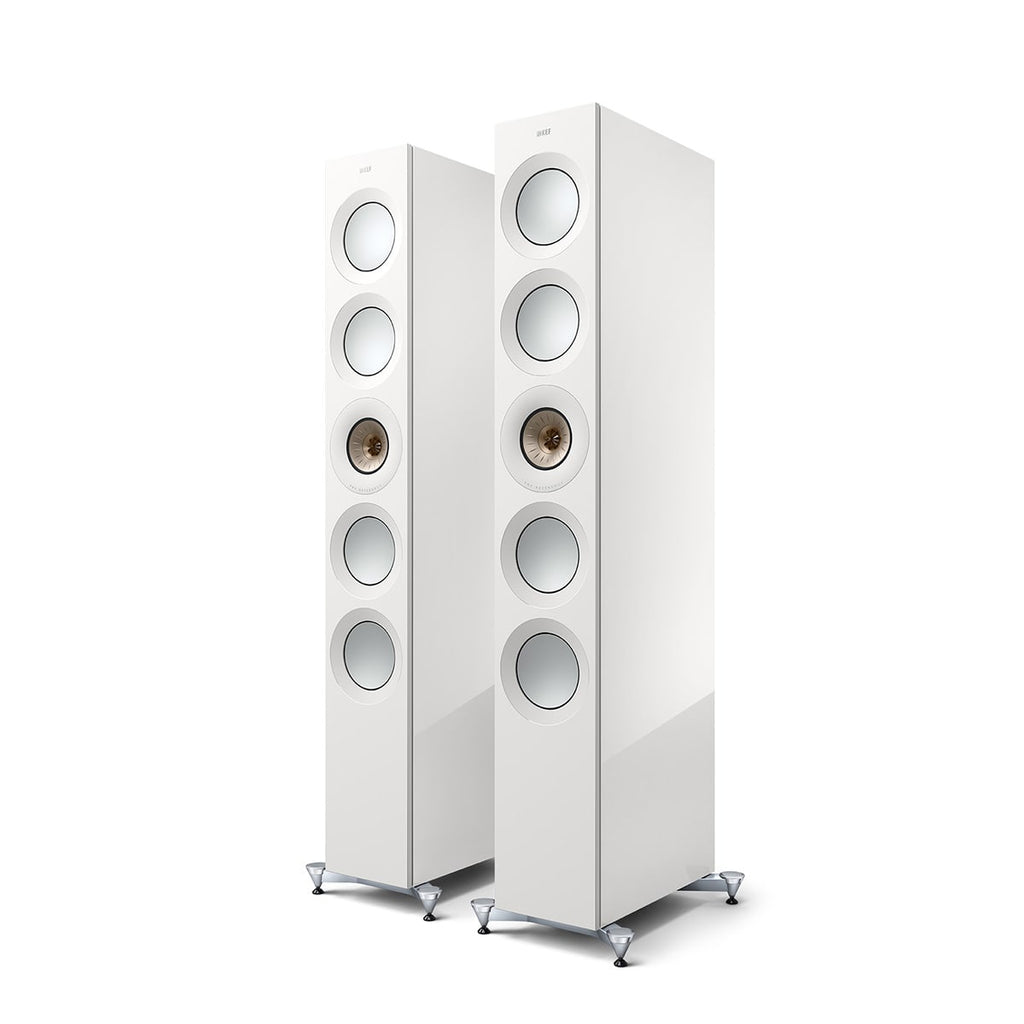

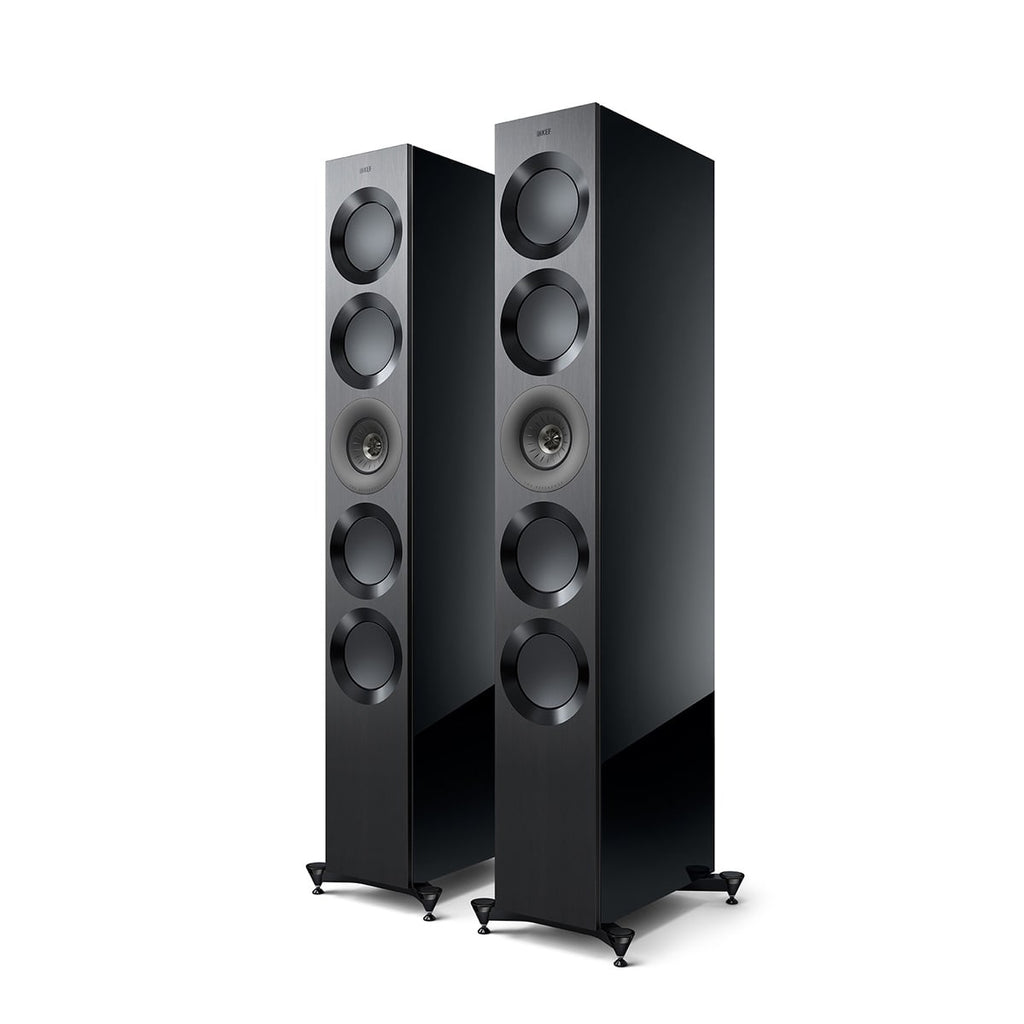

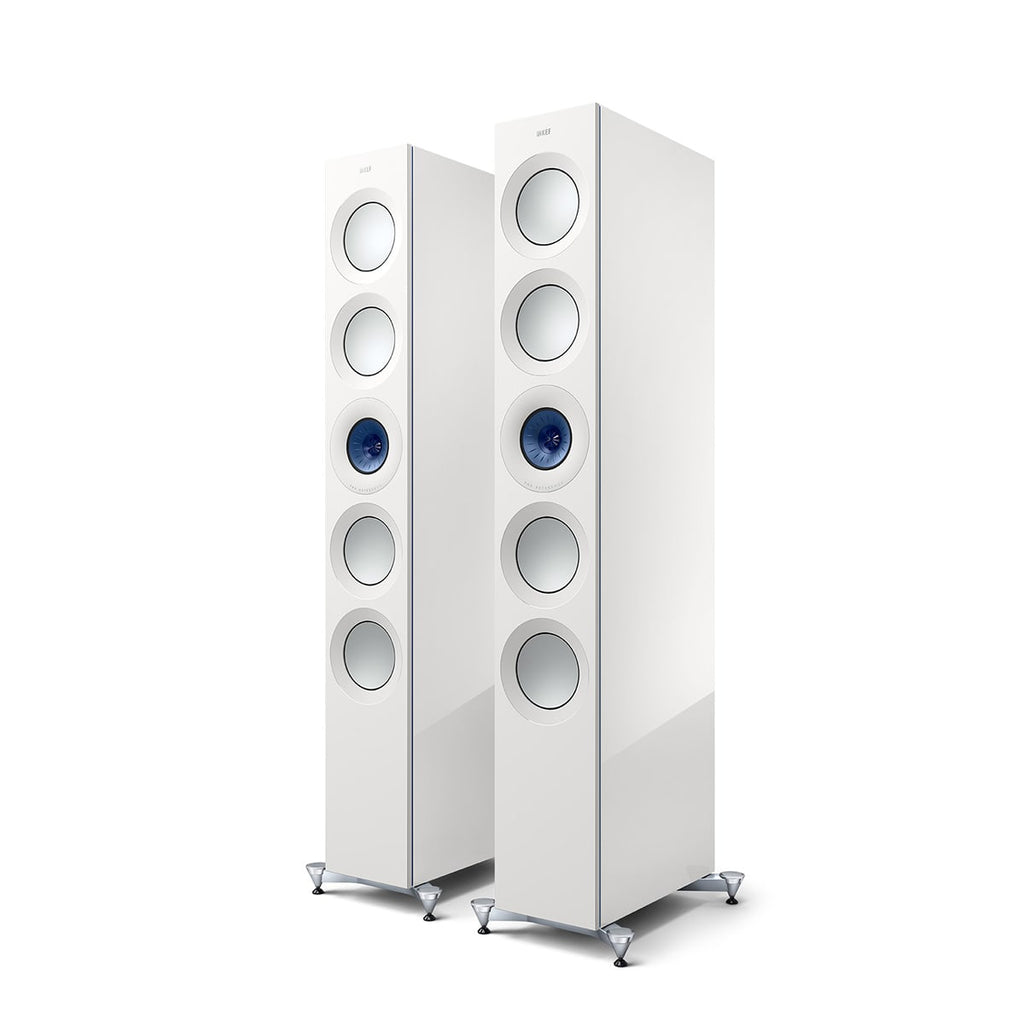

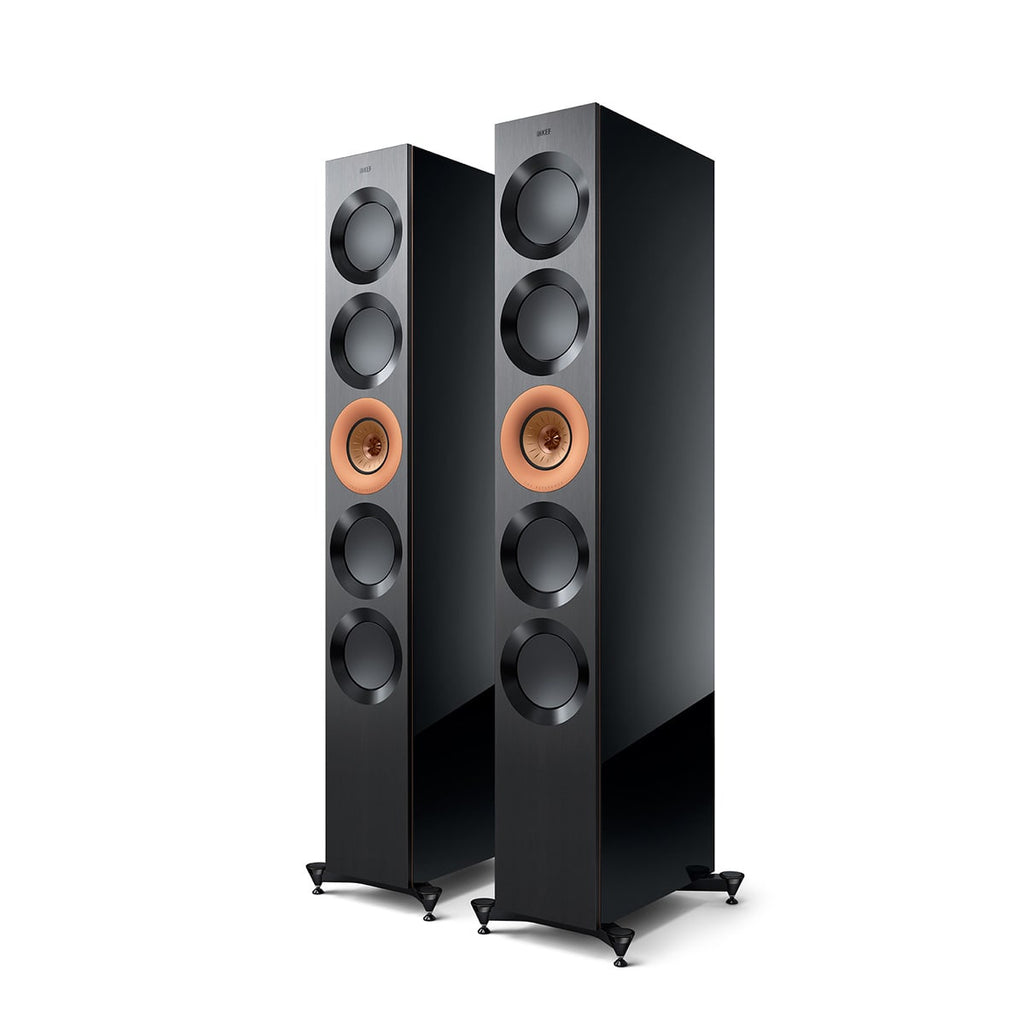

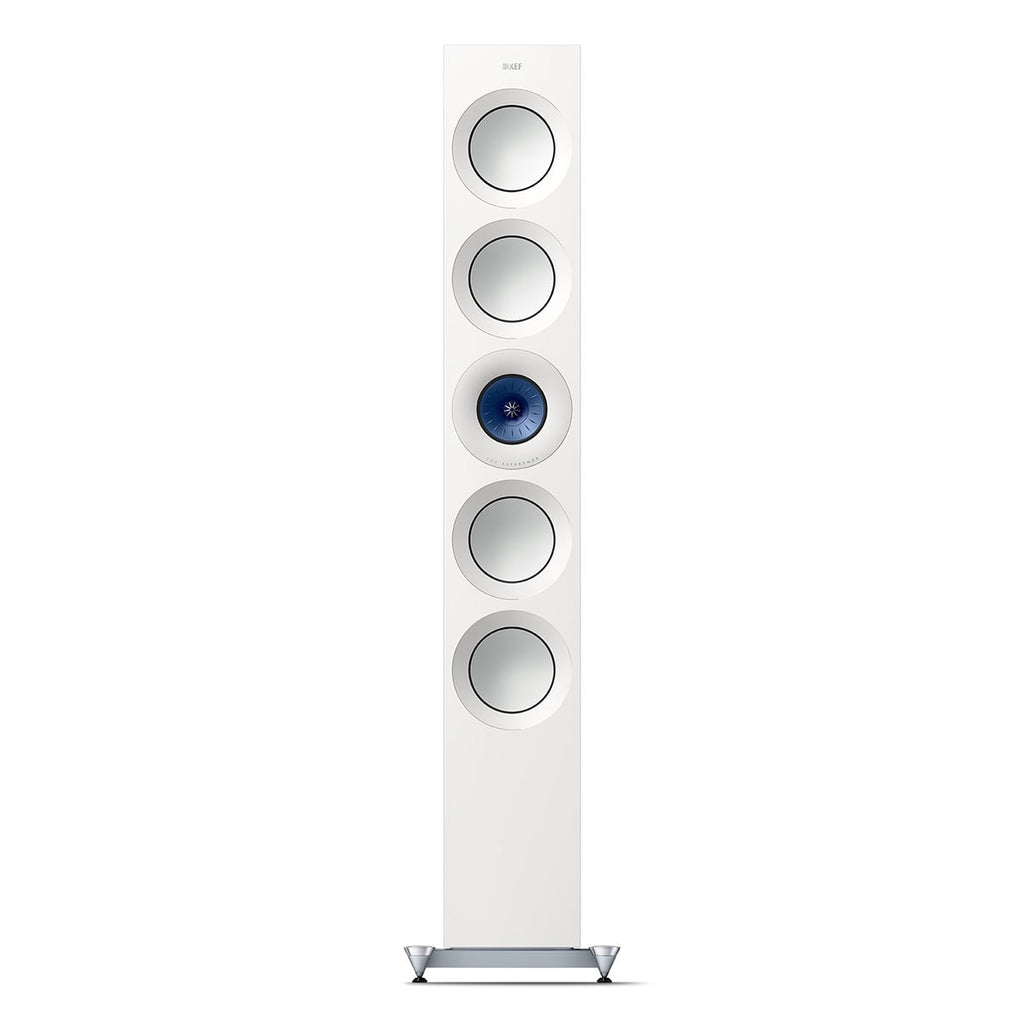

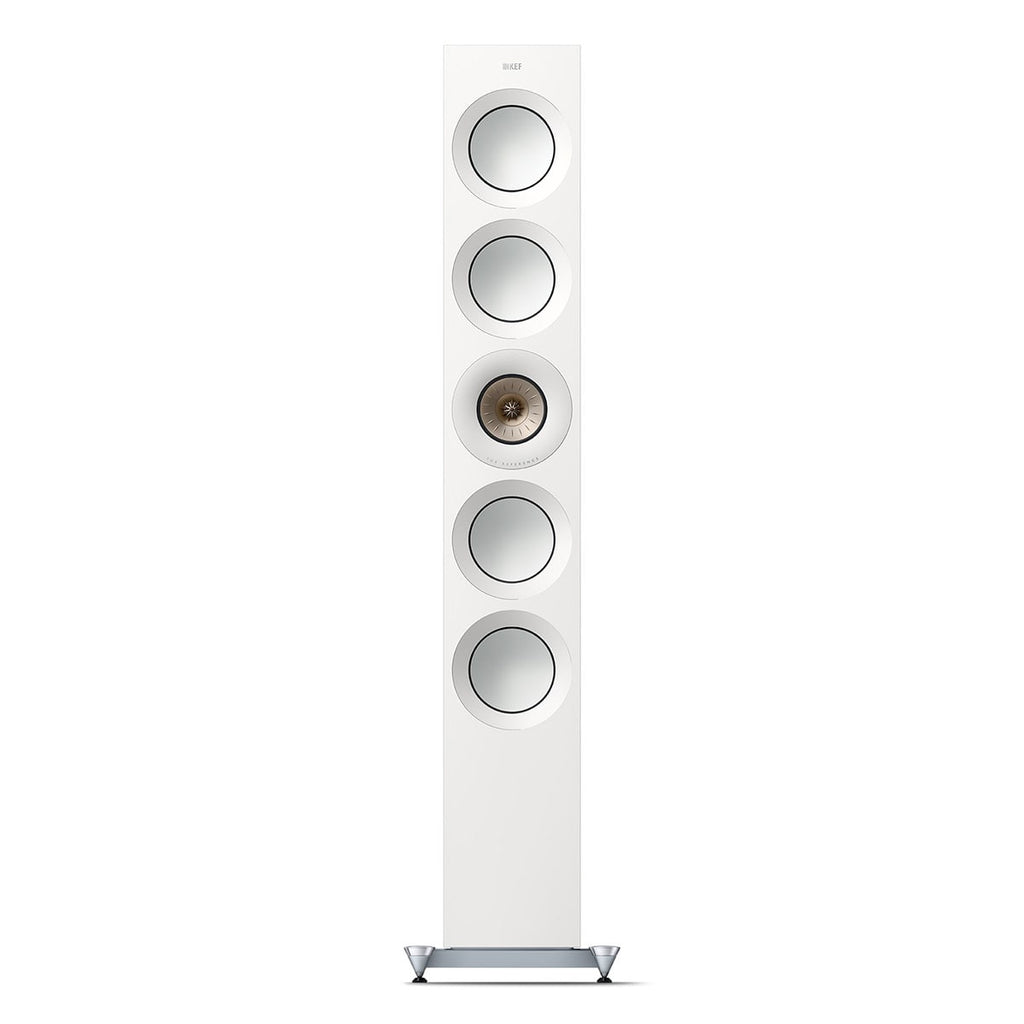

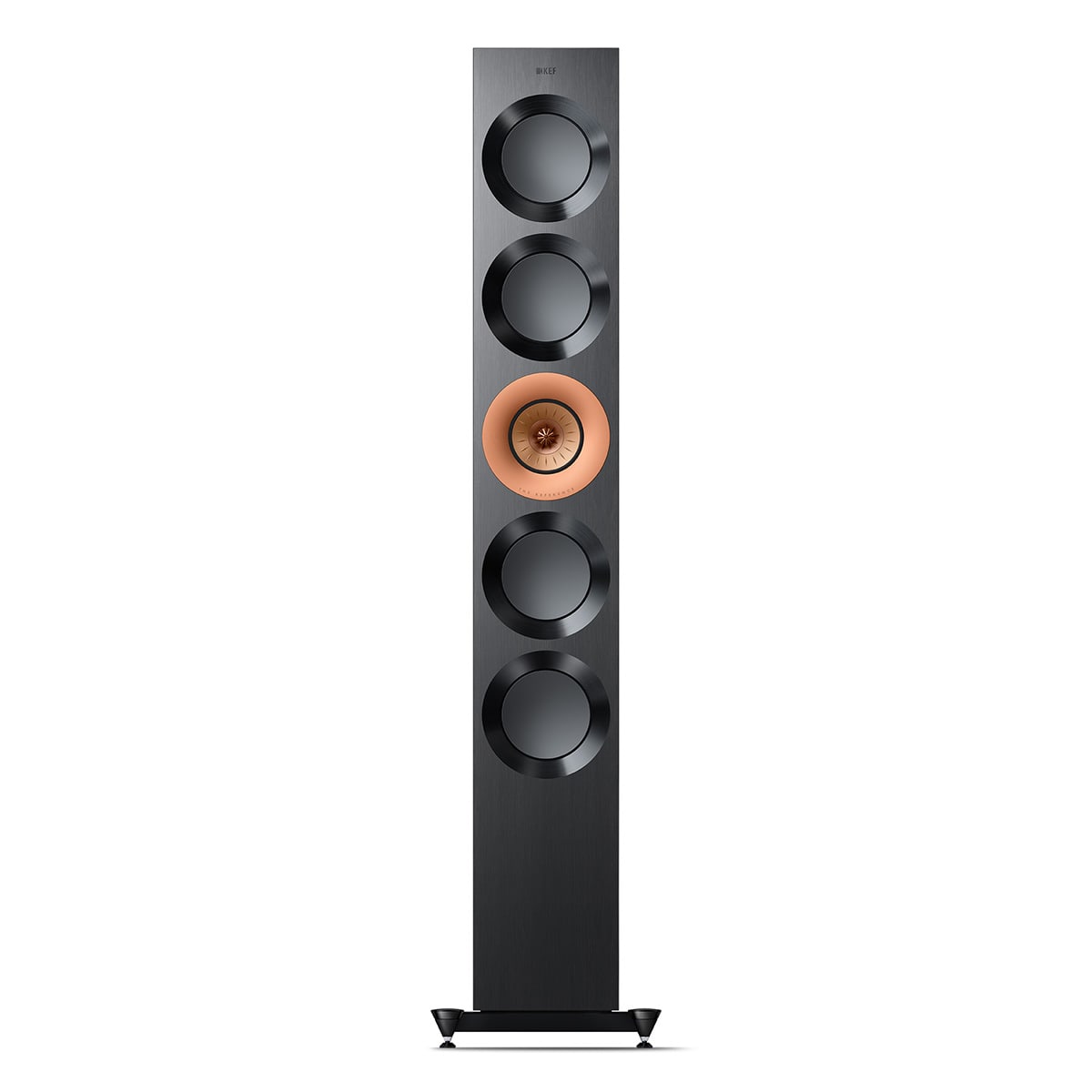

Silver satin walnut, Copper black aluminium, Blue ice white, Deep piano black, Satin American walnut, Luxury gloss rosewood
WEIGHT
60.2kg (132.7lbs)
DIMENSION (H X W X D)
H x W x D with grille and terminal :
1350 x 205 x 470 mm (53.1 x 8.0 x 18.5 in. )
H x W x D with grille, terminal & plinth :
1397 x 349 x 470 mm (55 x 13.7 x 18.5 in.)
DESIGN

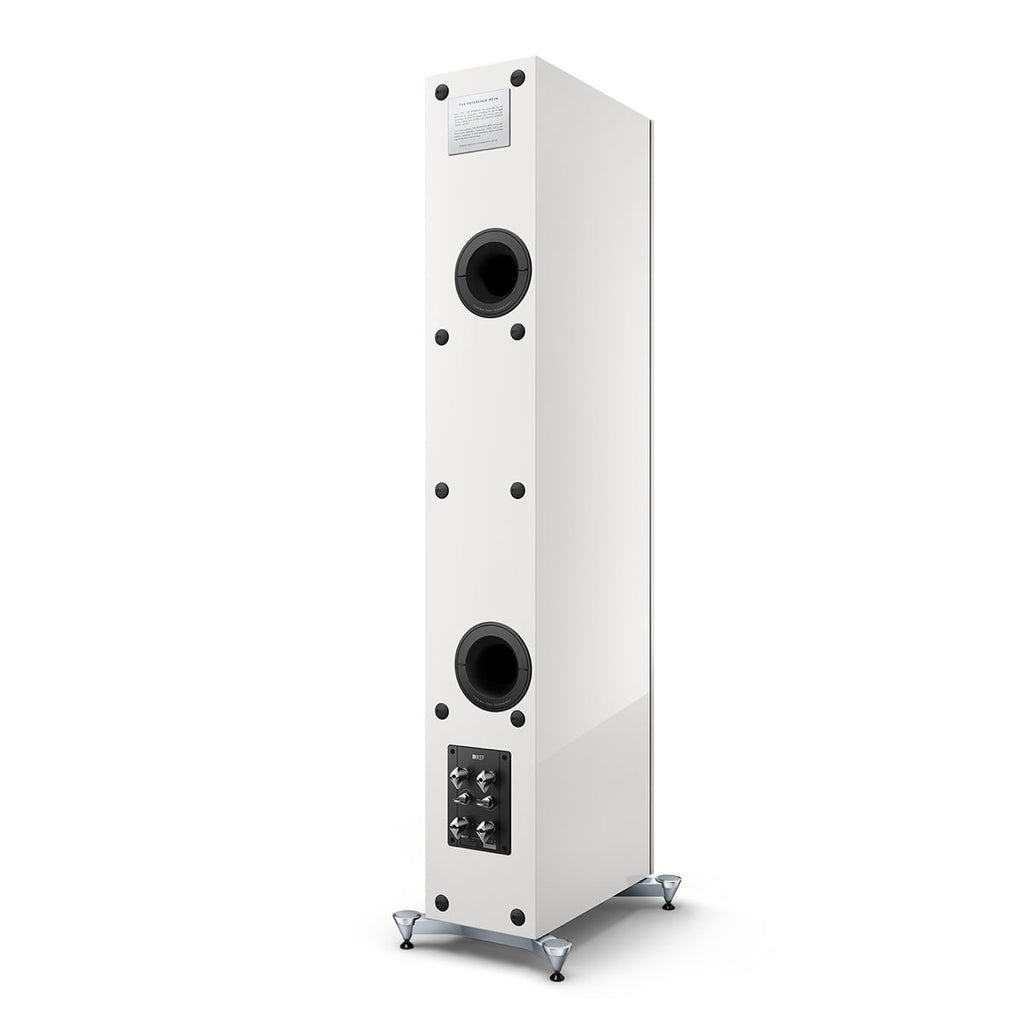

Three-way bass reflex
Unit measurement
Pair
Frequency Range
Typical in room bass response: 25Hz (-6dB)
Free Field - Short port: 35Hz - 45kHz (-6dB)
Free Field - Long port: 32Hz - 45kHz (-6dB)
Free Field - Short port: 35Hz - 45kHz (-6dB)
Free Field - Long port: 32Hz - 45kHz (-6dB)
Frequency Response
40Hz - 35kHz (±3dB)
Crossover Frequencies
350Hz, 2.8kHz
Maximum Output
116 dB (peak sound pressure level at 1m with pink noise)
Amplifier class
50-400W
Sensitivity
90dB (2.83V/1m)
Harmonic distortion
2nd & 3rd harmonics (90dB, 1m)<0.5% 40Hz – 100kHz
<0.2% 200Hz – 10kHz
Impedance
8 Ohms (min.3.2 Ohms)
DRIVE UNITS

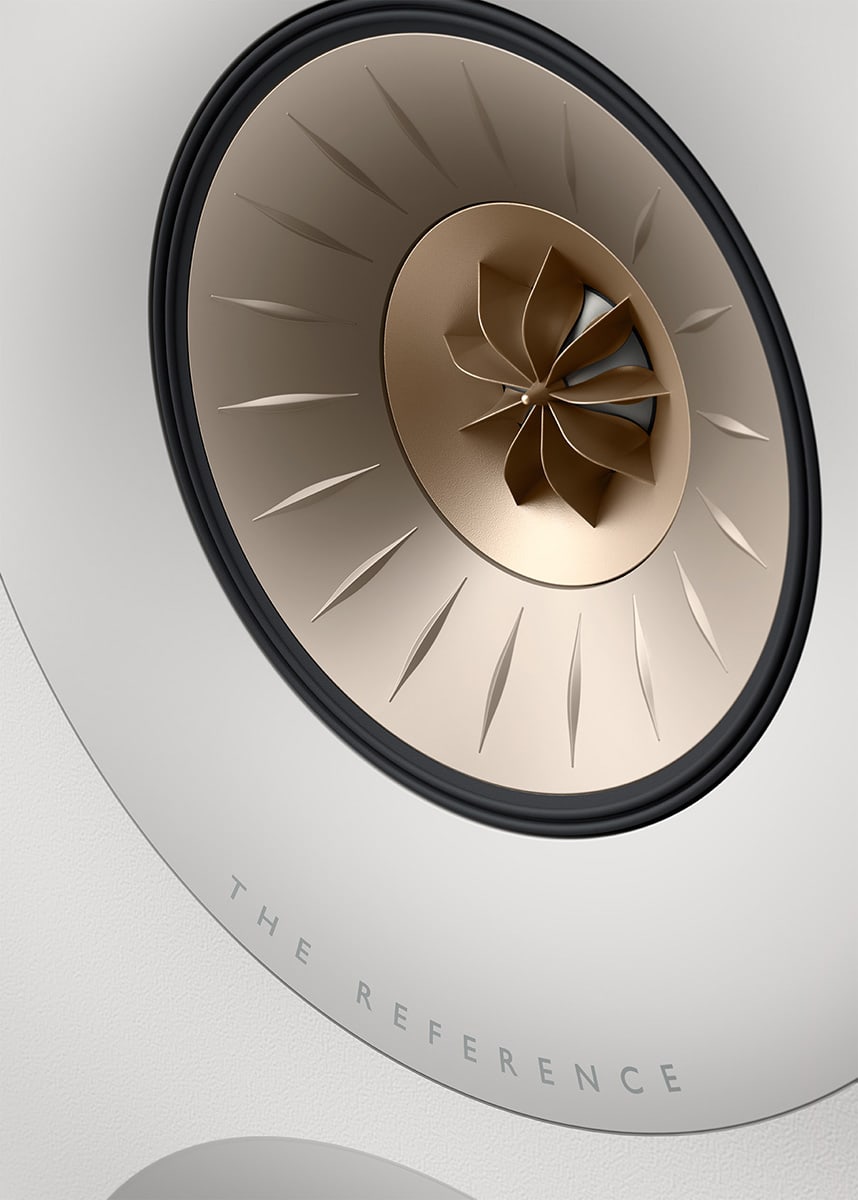

Uni-Q driver array:
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium
Bass units: LF: 4 x165mm (6.5in.) aluminium
CROSSOVER FREQUENCIES
350Hz, 2.8kHz
downloads
THE REFERENCE Brochure
THE REFERENCE Manual
THE REFERENCE 8b Manual
THE REFERENCE White Paper
THE REFERENCE Information Sheet
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. * Measurement per unit
