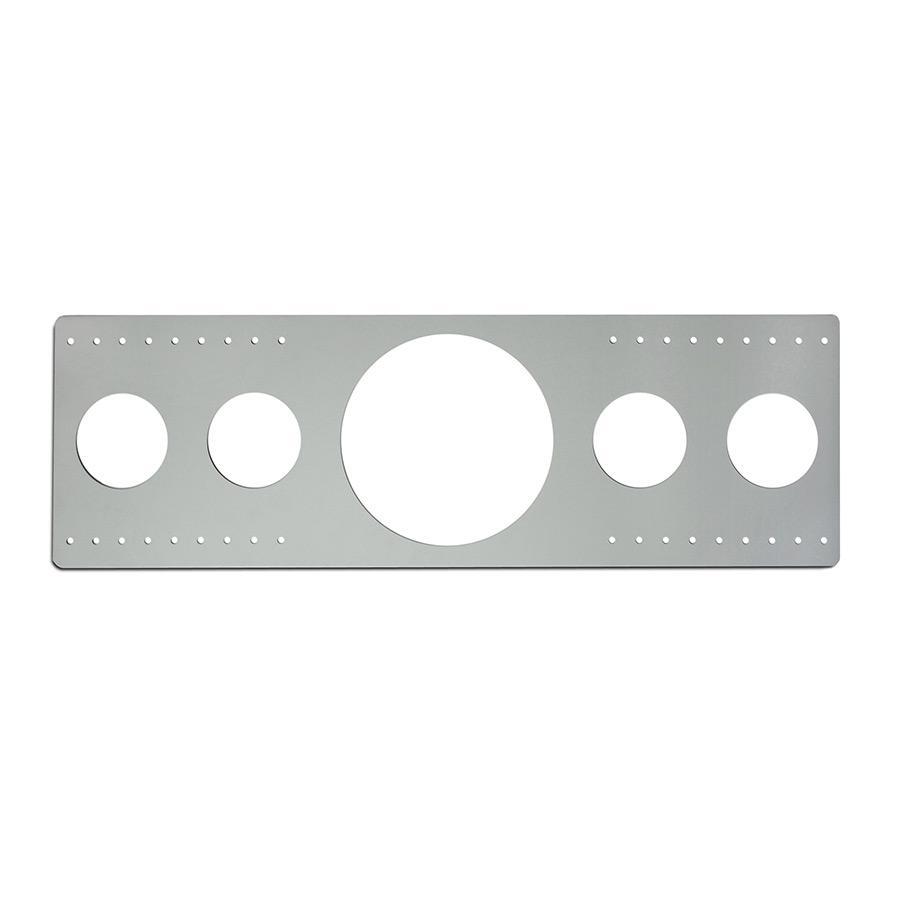

Rough-in Frames (new construction brackets) are used with in-wall and in-ceiling speakers and are available for most models.
Installed during the pre-wiring of a new construction installation, they allow the installer to reserve the space in the wall or ceiling and simplify cutting the perfect hole size.
KEF Ci Speaker Accessory
Rough-in Frames (new construction brackets) are used with in-wall and in-ceiling speakers and are available for most models. Installed during the pre-wiring of a new construction installation, they allow the installer to reserve the space in the wall or ceiling and simplify cutting the perfect hole size.
Round
Round
Ci200R
Cutout (mm)
Ø240mm
Cutout (in.)
Ø9.45in.
Rough-in Frame
RIF200R
SP3478AA
SP3478AA
Speakers
Ci200QR
Ci200CR
Ci200.3QR
Ci160QCT*
Ci160ST*
Ci200RR++
Ci200CR
Ci200.3QR
Ci160QCT*
Ci160ST*
Ci200RR++
Round
Ci160R
Cutout (mm)
Ø196mm
Cutout (in.)
Ø7.71in.
Rough-in Frame
RNC160R
SP3465AA
SP3465AA
Speakers
Ci160QR
Ci160CR
Ci160CRds
Ci160TR
Ci160SR
Ci160.2QR
Ci160.2FR
Ci110FCT*
Ci115QCT*
Ci160CR
Ci160CRds
Ci160TR
Ci160SR
Ci160.2QR
Ci160.2FR
Ci110FCT*
Ci115QCT*
Round
Ci130R
Cutout (mm)
Ø158mm
Cutout (in.)
Ø6.22in.
Rough-in Frame
RNC130R
SP3463AA
SP3463AA
Speakers
Ci130QR
Ci130CR
Ci130.2QR*
Ci130.2FR*
Ci130CR
Ci130.2QR*
Ci130.2FR*
Round
Ci100R
Cutout (mm)
Ø118mm
Cutout (in.)
Ø4.65in.
Rough-in Frame
RNC100R
SP3462AA
SP3462AA
Speakers
Ci100QR+
Round
Ci80R
Cutout (mm)
Ø97mm
Cutout (in.)
Ø3.82in.
Rough-in Frame
RNC80R
SP3461AA
SP3461AA
Speakers
Ci80.2QR+
Round
Ci50R
Cutout (mm)
Ø65mm**
Cutout (in.)
Ø2.56in.**
Rough-in Frame
Ci50CAN**
SP3509AA
SP3509AA
Speakers
Ci50R
Rectangle
Rectangle
Ci200L
Cutout (mm)
334 x 238mm
Cutout (in.)
13.15 x 9.37in.
Rough-in Frame
RIF200L
SP3782AA
SP3782AA
Speakers
Ci200QL
Ci200CL
Ci200CL
Rectangle
Ci160L
Cutout (mm)
274 x 194mm
Cutout (in.)
10.79 x 7.64in.
Rough-in Frame
RIF160L
SP3781AA
SP3781AA
Speakers
Ci160QL
Ci160CL
Ci160SL
Ci160CL
Ci160SL
Rectangle
Ci4100L
Cutout (mm)
478 x 116mm
Cutout (in.)
18.82 x 4.57in.
Rough-in Frame
RIF4100L
SP3846AA
SP3846AA
Speakers
Ci4100QL
Ci4100QLb
Ci4100QLb
Rectangle
Ci3160L
Cutout (mm)
660 x 209mm
Cutout (in.)
25.98 x 8.23in.
Rough-in Frame
RIF3160L
SP3847AA
SP3847AA
Speakers
Ci3160RL
Ci3160RLb
Ci3160RLb
Rectangle
Ci5160L
Cutout (mm)
1050 x 209mm
Cutout (in.)
41.34 x 8.23mm
Rough-in Frame
RIF160L
SP3848AA
SP3848AA
Speakers
Ci5160RL
Square
Square
Ci200S
Cutout (mm)
238 x 238mm
Cutout (in.)
9.37 x 9.37in.
Rough-in Frame
RIF200S
SP3479AA
SP3479AA
Speakers
Ci200QS
Ci200.3QS
Ci200.3QS
Square
Ci160S
Cutout (mm)
194 x 194mm
Cutout (in.)
7.64 x 7.64in.
Rough-in Frame
RIF160S
SP3477AA
SP3477AA
Speakers
Ci160QS
Ci160CS
Ci160CSds
Ci160SS
Ci160.2QS
Ci160.2FS
Ci160CS
Ci160CSds
Ci160SS
Ci160.2QS
Ci160.2FS
Square
Ci130S
Cutout (mm)
158 x 158mm
Cutout (in.)
6.22 x 6.22in.
Rough-in Frame
RIF130S
SP3475AA
SP3475AA
Speakers
Ci130QS
Ci130CS
Ci130.2QS
Ci130.2FS
Ci130CS
Ci130.2QS
Ci130.2FS
Square
Ci100S
Cutout (mm)
112 x 112mm
Cutout (in.)
4.41 x 4.41in.
Rough-in Frame
RIF100S
SP3780AA
SP3780AA
Speakers
Ci100QS
* Due to integrated back can this unit is not compatible with the rear enclosure.
** Ci50R cut out is 70mm (2.76in.) with the rear can. The Ci50 rear can is able to be used in a retro-fit installation
+ Use of metal rear enclosure with these models requires removal of integrated plastic rear can
** Ci50R cut out is 70mm (2.76in.) with the rear can. The Ci50 rear can is able to be used in a retro-fit installation
+ Use of metal rear enclosure with these models requires removal of integrated plastic rear can
The Details
SPECIFICATIONS
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
