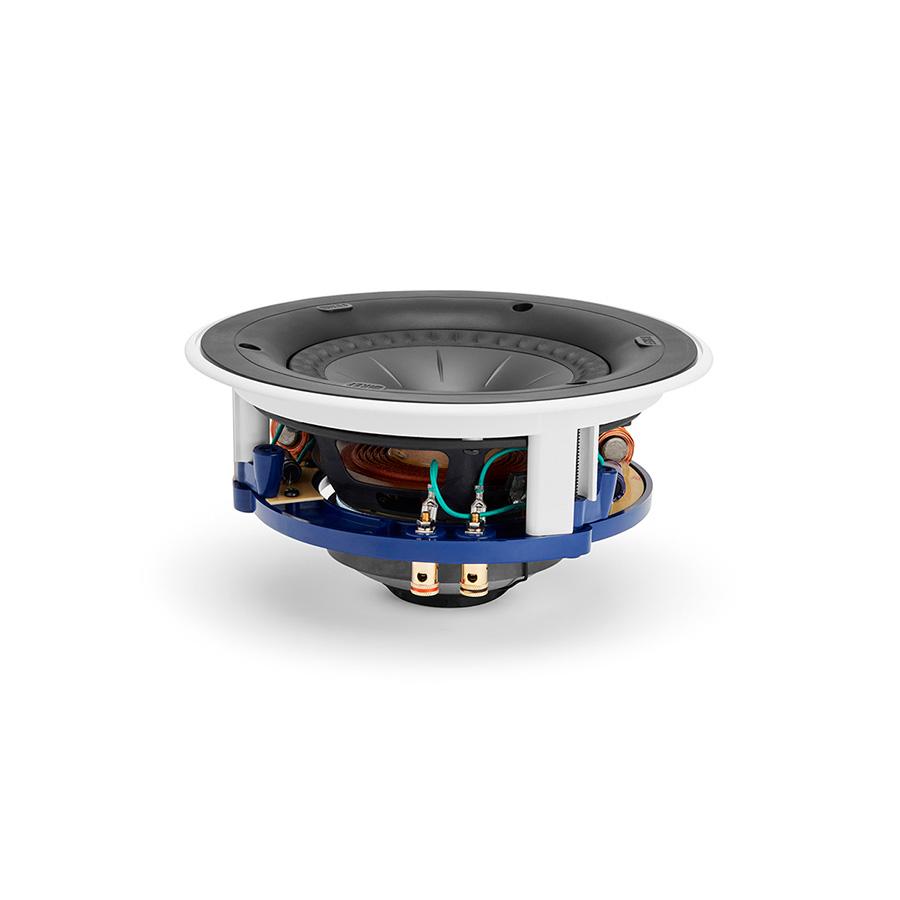

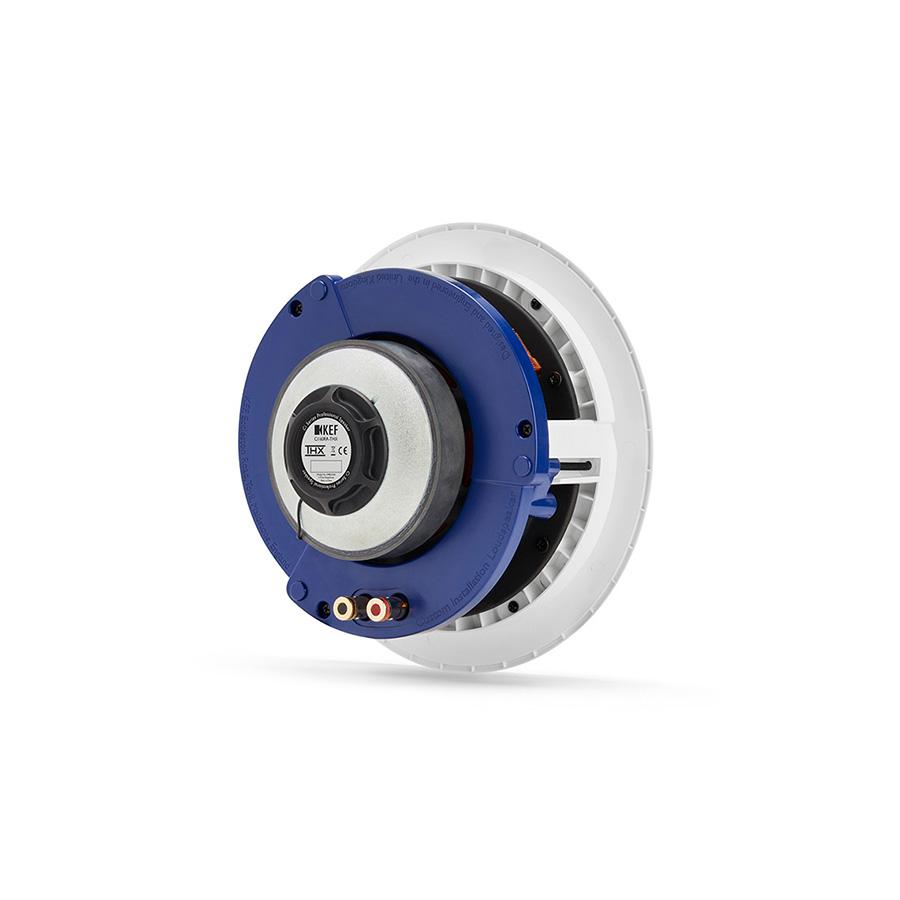

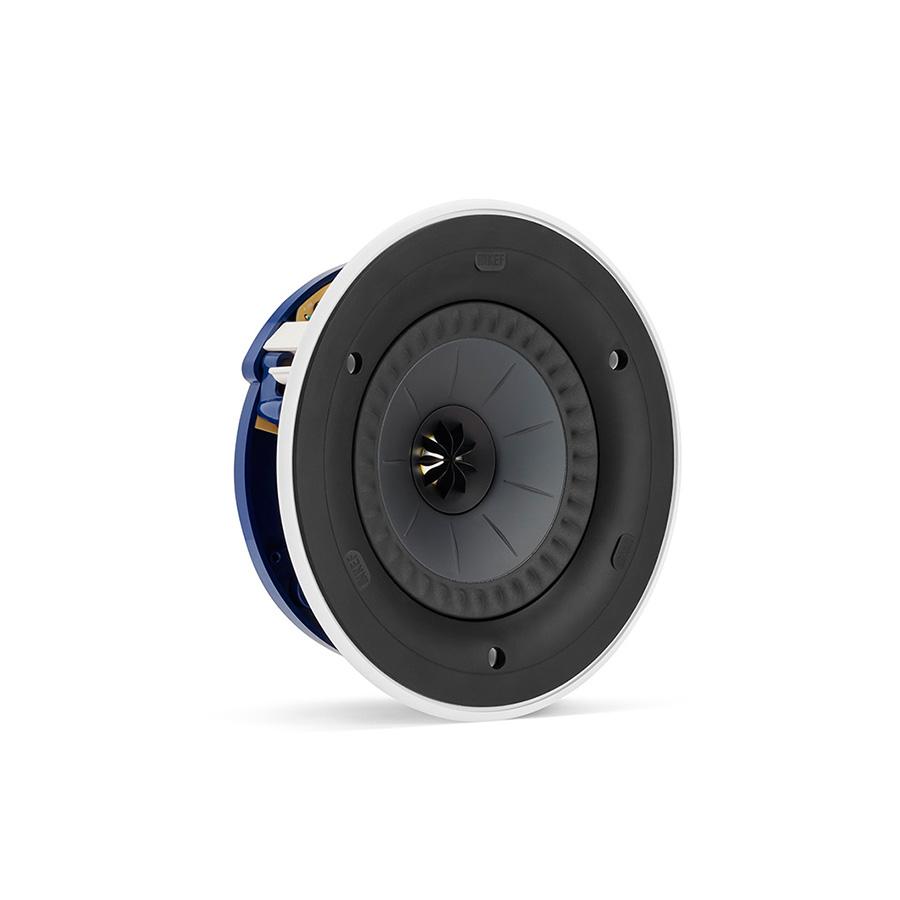

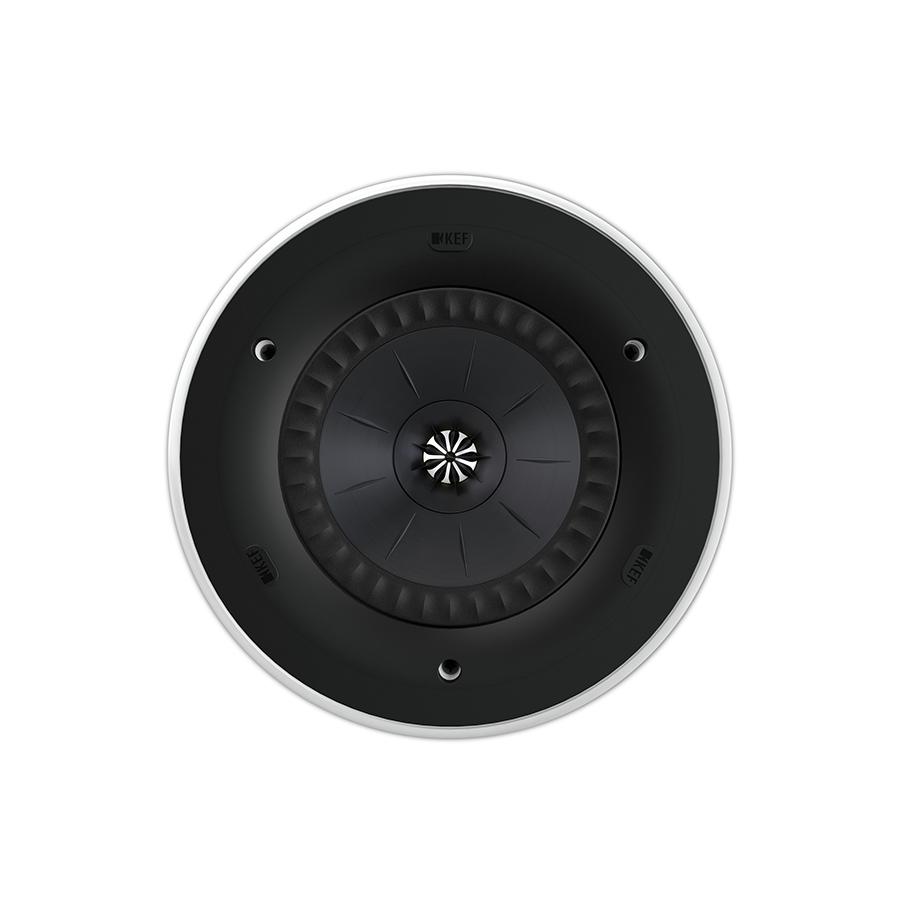

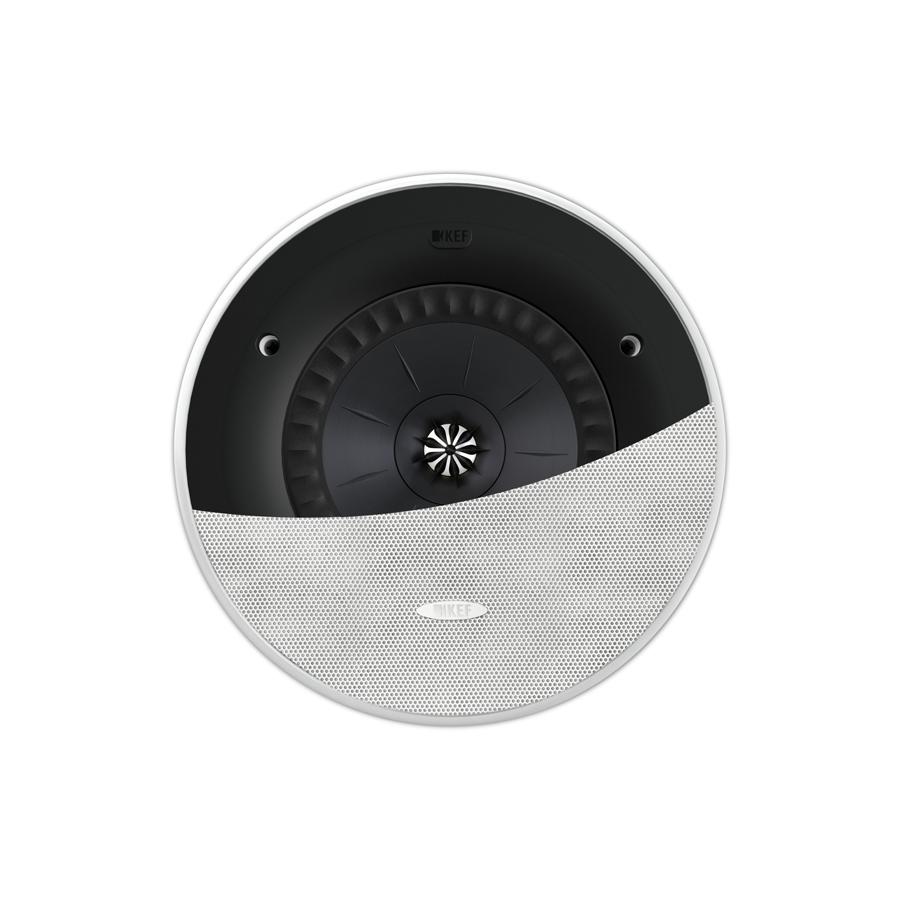

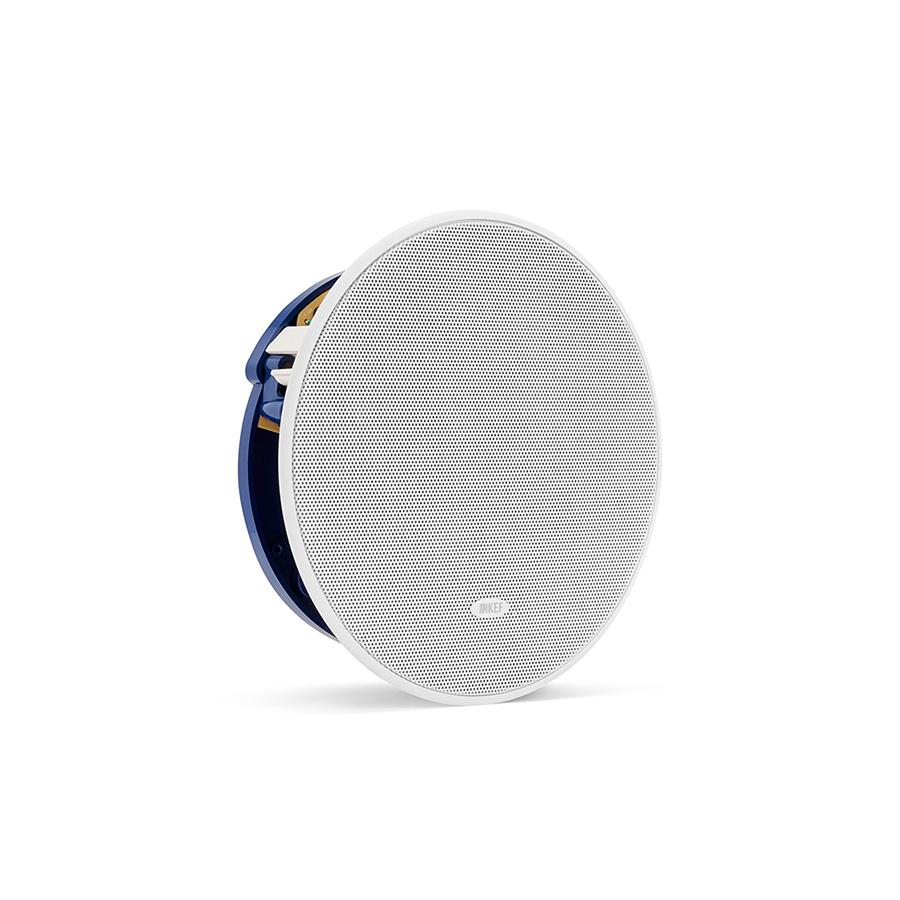

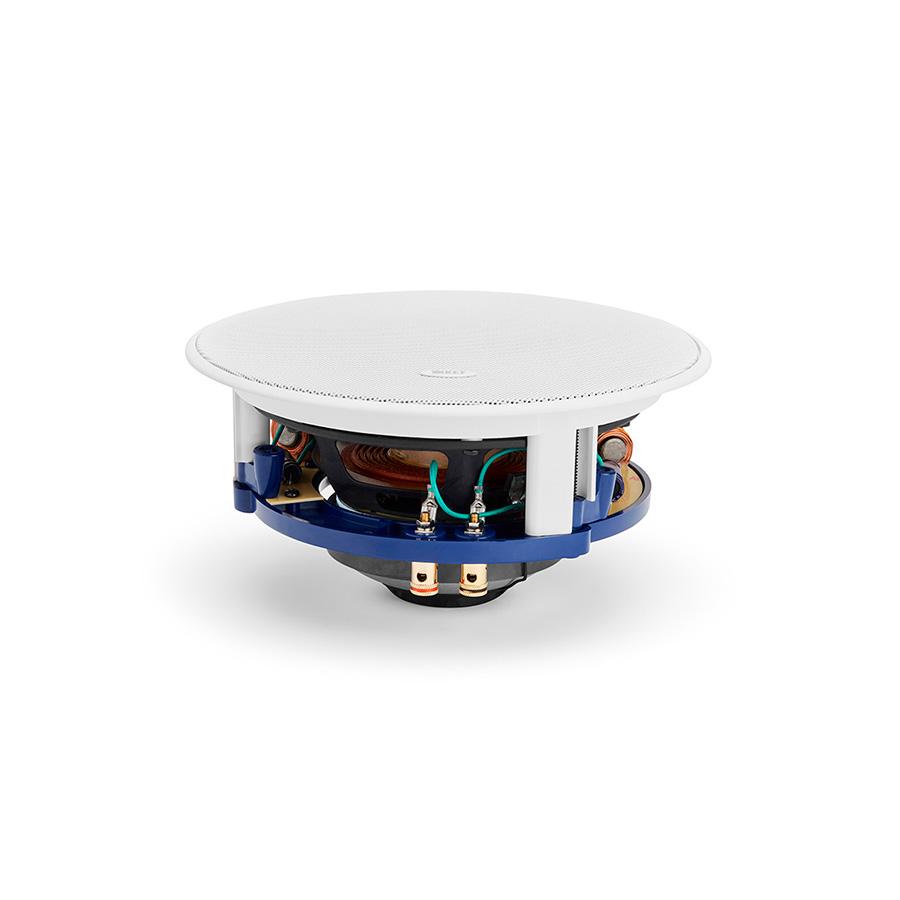

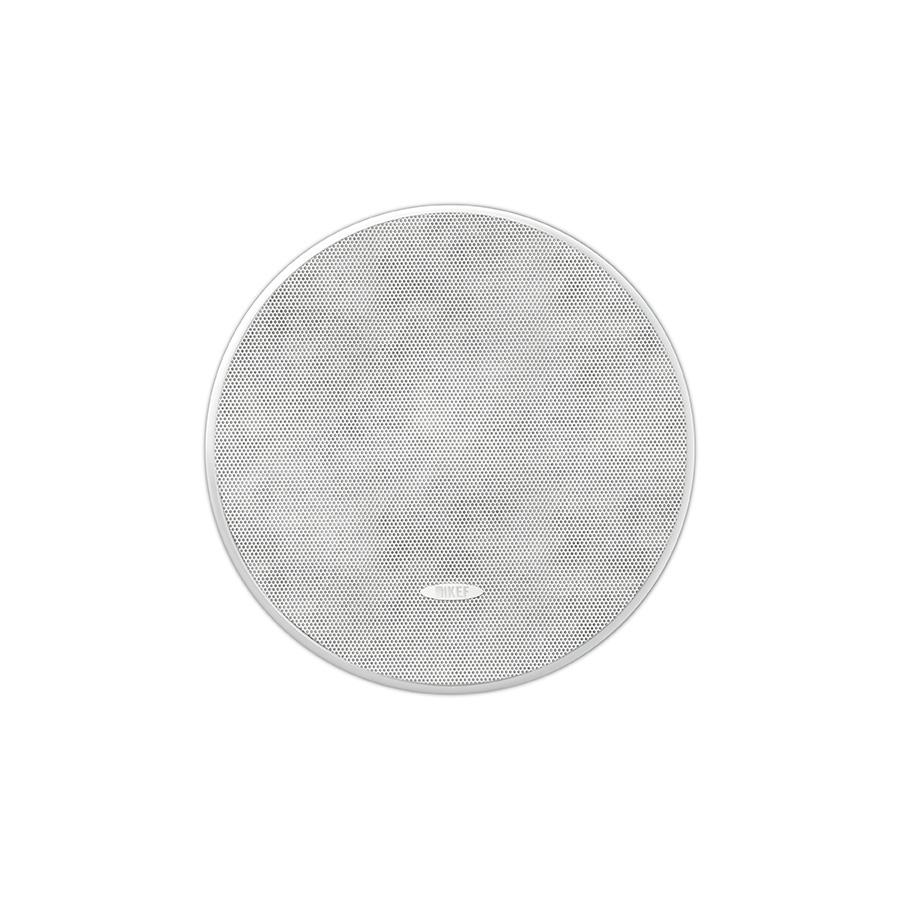

THX® Certified Ultra Architectural Speaker
Ci160RR-THX# is an ultra-high-performance loudspeaker featuring KEF's signature Uni-Q technology, designed for discreet in-ceiling or in-wall installation. As part of the Ci-R Series and a THX® Certified Ultra architectural loudspeaker, Ci160RR-THX is engineered to maintain exceptional sound quality at high outputs.
Ci160RR-THX
Ci160RR-THX’s Uni-Q® array boasts a 25mm high frequency tweeter mounted in the acoustic centre of a 165mm woofer, delivering the same, natural performance across the entire listening area. Plus, a Universal Cut-out system means its opening is the same as any 160mm KEF speaker for ease of installation and component selection.
#To meet THX Certified Ultra distortion specifications, install with 3 litre rear enclosure and set the A/V processor speaker size to small.
#To meet THX Certified Ultra distortion specifications, install with 3 litre rear enclosure and set the A/V processor speaker size to small.
The Details
SPECIFICATIONS
Nominal Impedance
4 Ohms
Sensitivity
90dB (2.83V/ 1m)
Frequency Response (±6DB)
Open-Backed
Open-Backed
52Hz - 24kHz
Frequency Range (-10DB)
38Hz-30kHz
Nominal Coverage (Degrees)
130
Optional Rough In Frame
RIF160R
Optional Rear Enclosure
NA
Ideal Rear Volume (L)
20
Minumum Rear Volume(L)
10
Recommended Amplifier Power
10-190W
Recommended High-Pass Filter (HZ)
38Hz
Product External Dimension (H X W X D)
Diameter Ø: 234.6mm (9.24in.)
Depth :115mm (4.53in)
Depth :115mm (4.53in)
Cut-Out Dimensions(H X W)
Diameter Ø: 196mm (7.71in.)
Mounting Thickness
Ceiling Thickness (Maximum): 37mm (1.460in.)
Ceiling Thickness (Minimum): 4mm (0.160in.)
Ceiling Thickness (Minimum): 4mm (0.160in.)
Mounting Depth From Surface
110mm (4.33in.)
MAX SPL (DB)
105
Crossover Frequency
2.1kHz
Driver Unit
LF: 165mm (6.5in.) Uni-Q
HF: 25mm (1in.)
HF: 25mm (1in.)
Net Weight
2.94kg (6.48Ibs.)
Certification
THX ULTRA
Safety And Regulatory Compliance
IP64
Downloads
Remarks
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. THX, the THX logo, and Ultra are trademarks of THX Ltd. THX and the THX logo are registered in the U.S. and other jurisdictions. All rights reserved.
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
Please visit our Ci Software Download page for more details.
