Architectural Speakers
Architectural Speakers

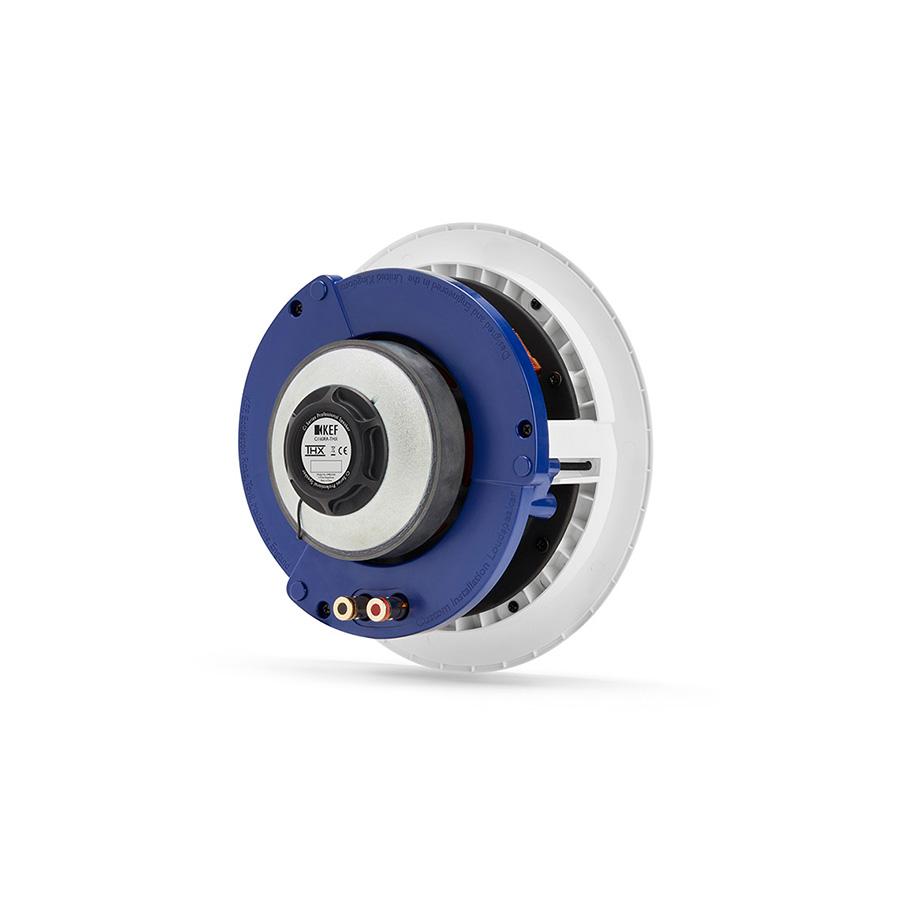

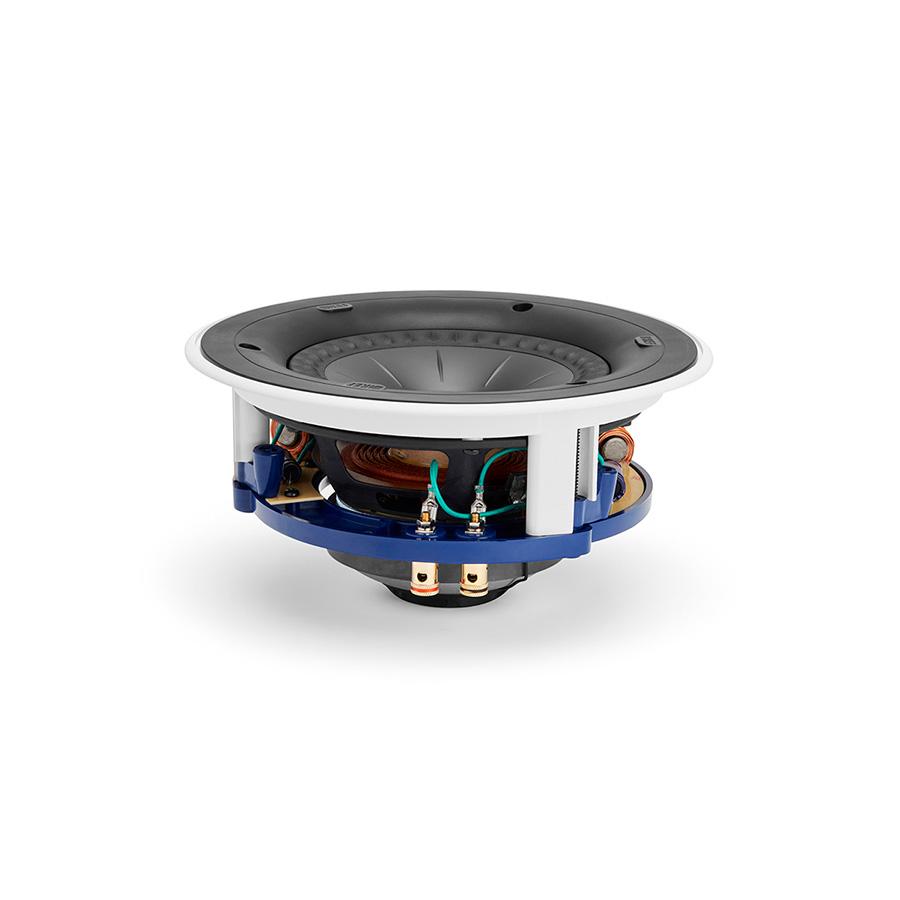

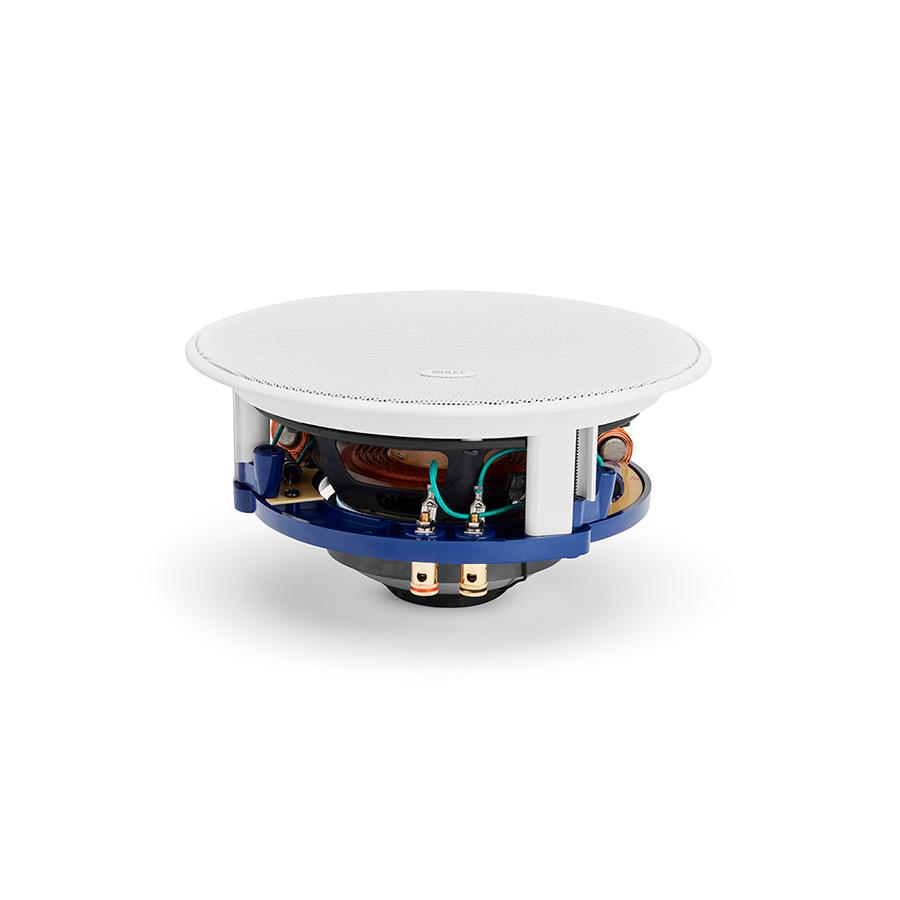

Ci160RR-THX
THX® Certified Ultra Architectural Speaker
£599
Sale price
£599
Regular price
£0
/ PieceCi160RR-THX
Ci160RR-THX’s Uni-Q® array boasts a 25mm high frequency tweeter mounted in the acoustic centre of a 165mm woofer, delivering the same, natural performance across the entire listening area. Plus, a Universal Cut-out system means its opening is the same as any 160mm KEF speaker for ease of installation and component selection.
#To meet THX Certified Ultra distortion specifications, install with 3 litre rear enclosure and set the A/V processor speaker size to small.
Frequency Response
52Hz - 24kHz (±6DB) Open-Backed
Frequency Range
38Hz-30kHz (-10DB)
Sensitivity
90dB (2.83V/ 1m)
Nominal Impedance
4 Ohms
Nominal Coverage
130
Maximum SPL Measured at 1m
105dB dB
Drive Units
LF: 165mm (6.5in.) Uni-Q
HF: 25mm (1in.)
HF: 25mm (1in.)
Crossover Frequency
2.1kHz
Recommended Amplifier Power
10-190W
Recommended High-Pass Filter (HZ)
38Hz
Mounting Depth From Surface
110mm (4.33in.)
Ideal Rear Volume
(L) 20
Minimum Rear Volume
(L) 10
Net Weight
2.94kg (6.48Ibs.)
Certification
THX ULTRA
Remarks
Cut-Out Dimensions (H X W):
Diameter Ø: 196mm (7.71in.)
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. THX, the THX logo, and Ultra are trademarks of THX Ltd. THX and the THX logo are registered in the U.S. and other jurisdictions. All rights reserved.
Diameter Ø: 196mm (7.71in.)
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. THX, the THX logo, and Ultra are trademarks of THX Ltd. THX and the THX logo are registered in the U.S. and other jurisdictions. All rights reserved.
Product External Dimensions (H x W x D)
234.6 mm x 115 mm x 234.6 mm (4.53 in. x 4.53 in. x 9.24 in.)
